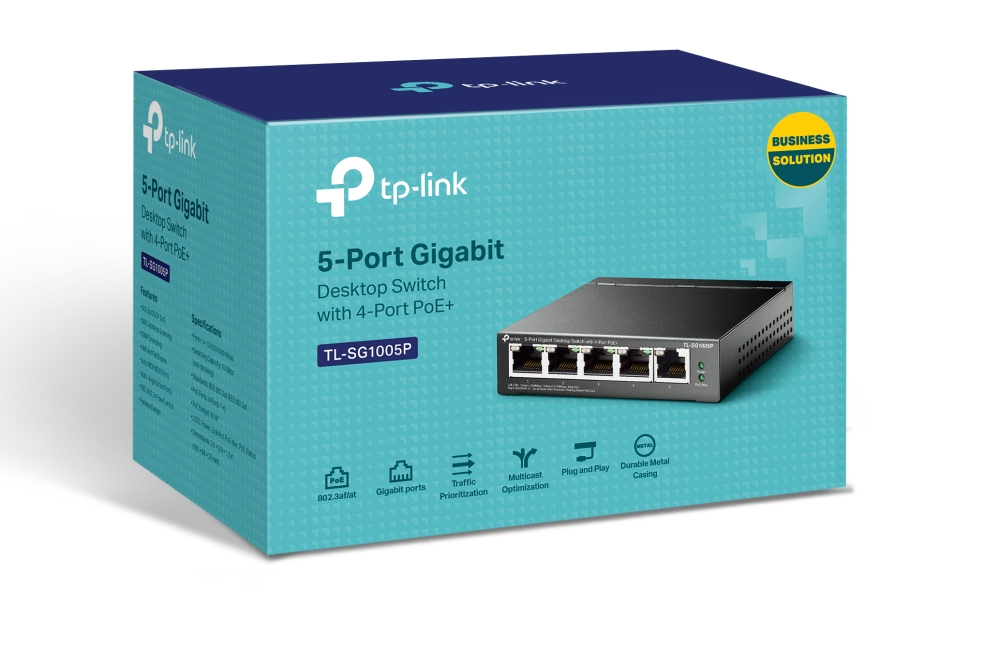

TP-LINK TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE
เพิ่มเมื่อ: 2018-07-16 14:32:07.0
แก้ไขล่าสุด: 2024-07-02 16:27:35.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comTL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE(สินค้ารับประกันตลอดอายุการใช้งาน)
TP-LINK TL-SG1005P
TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE
- 5 10/100/1000Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 15.4W for each PoE port
- Supports PoE Power up to 56W for all PoE ports
- Requires no configuration and installation
Interface
• 5× 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
External Power Supply : External Power Adapter (Output: 53.5 VDC / 1.31 A)
Packet Forwarding Rate : 7.44 Mpps
PoE Ports (RJ45) :
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 65 W
Mac Address Table : 2K
Jumbo Frame : 16 KB
Switching Capacity : 10 Gbps
Dimensions ( W x D x H ) : 3.9×3.9×1.0 in (99.8×98×25 mm)
Max Power Consumption
• 3.44 W (220/50 Hz. no PD connected)
• 74.49 W (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation
• 11.73 BTU/h (no PD connected)
• 254.01 BTU/h (with 65 W PD connected)
Advanced Features :
• Compatible With IEEE 802.3af/at Compliant PDs
• Mac Address Auto-Learning And Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
• Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)

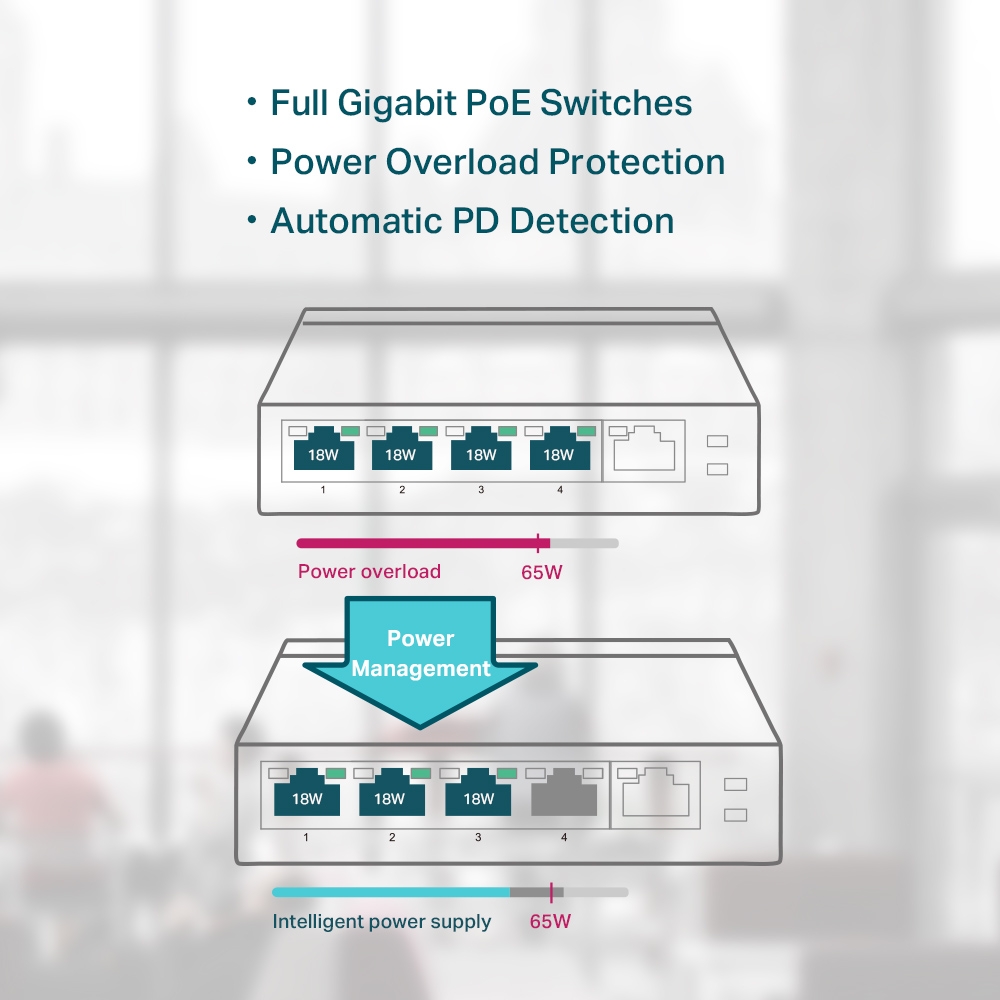

• PoE Auto Recovery (Ports 1-4)
Transfer Method : Store-And-Forward
Package Contents :
• TL-SG1005P
• Power Adapter
• Installation Guide
Environment :
• Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
