TENDA TEG1105PD 5-Port Gigabit PD Switch With 4-Port PoE
เพิ่มเมื่อ: 2023-01-24 13:52:43.0
แก้ไขล่าสุด: 2023-01-24 14:29:54.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comTEG1105PD 5-Port Gigabit PD Switch With 4-Port PoE (สินค้ารับประกัน 5 ปี)
TENDA TEG1105PD

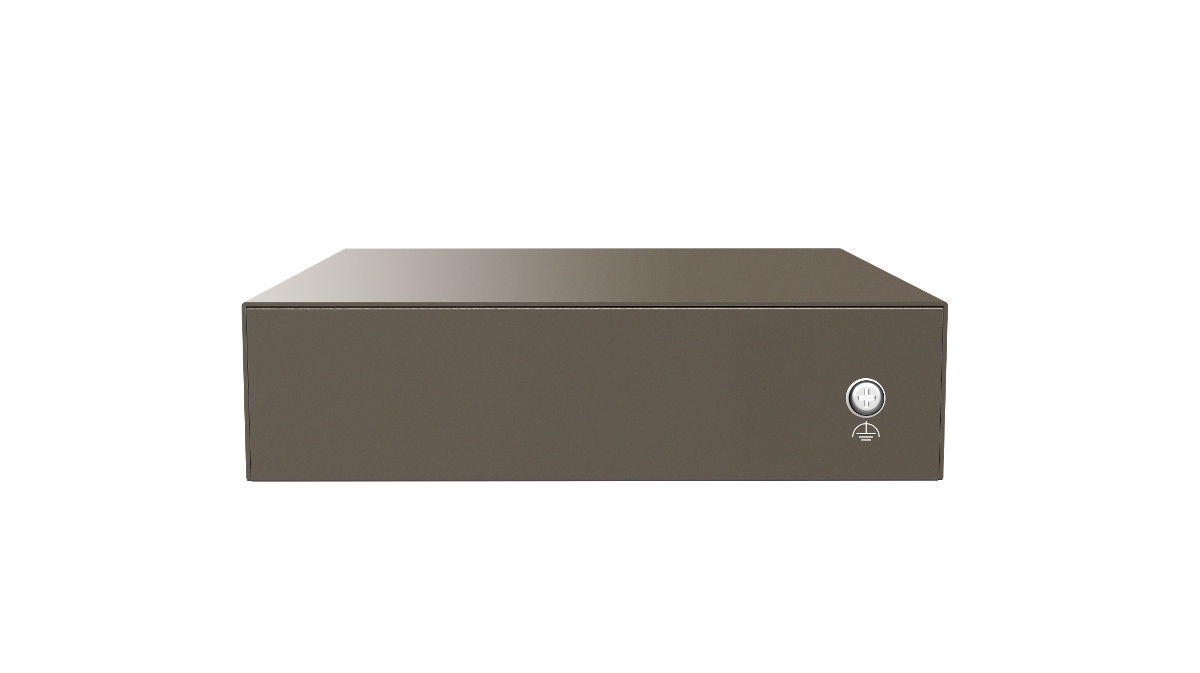

TEG1105PD 5-Port Gigabit PD Switch With 4-Port PoE
Featuring low cost, high performance and plug & play, the PoE switch TEG1105PD is both a PSE and a PD, designed for such surveillance networking scenarios as roads in parks/communities, medium to large factories, and colleges. Small and delicate, it can be installed in an outdoor waterproof box easily. The switch provides four 10/100/1000 Mbps PoE OUT ports (ports 1 to 4) compliant with IEEE 802.3af and one 10/100/1000 Mbps PoE IN port (port 5) compliant with IEEE 802.3af/at. The maximum PoE output power of the whole switch is 30 W. The switch can supply power and transmit data to low-power APs and IP cameras through CAT5 cables, greatly reducing the cost of the network deployment. It is an ideal choice for wired networking in monitoring scenarios of middle to long distance.
Network standards : IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
LED Indicator :
1* Power LED indicator
4* PoE LED
indicators
5* Link/Act LED indicators
Interfaces :
4*10/100/1000 Base-T Ethernet Ports(Data/PoE UT)
1*10/100/1000 Base-T Ethernet Port(Data/PoE IN)
Transmission media : Recommended: CAT5/5e UTP or better
Fan quantity : N/A
Dimension : 100.0 mm x 100.0 mm x 26.0 mm
Level of protection :
Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode : Store-and-forward
Switch capacity : 10 Gbps
Packet forwarding rate : 7.44Mpps
Buffer : 1 Mb
MAC address table : 2K
Jombo frame : 9K
PoE budget : Single port: AF: 15.4W
Input voltage : 50-57V DC, 0.6A
Mounting :
Desktop mounting: support
Wall mounting: non-support
Rack mounting : non-support
Environment :
Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certification : FCC、CE、RoHS
