TP-LINK ES206GP

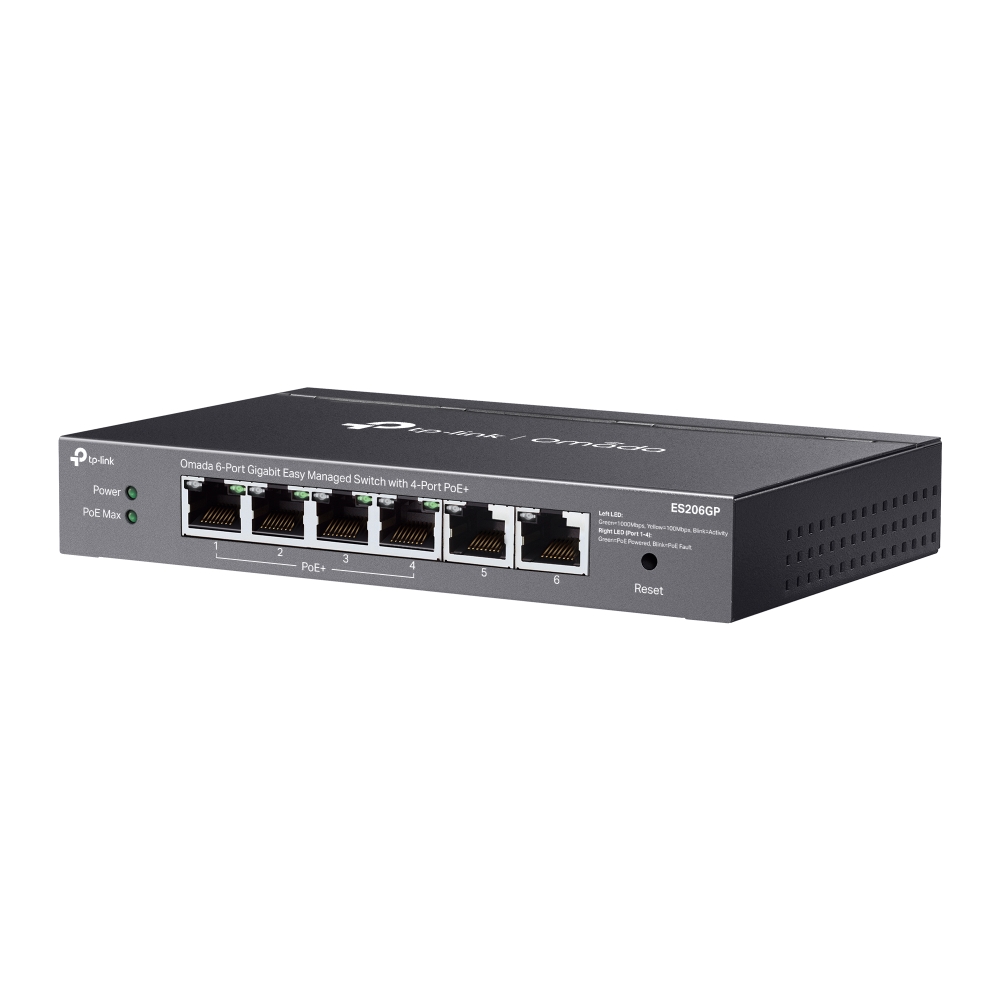

SWITCH (สวิตซ์) TP-LINK ES206GP Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+
- 6× 10/100/1000Mbps RJ45 ports (4× 802.3af/at-compliant PoE+)
- 65W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app
- Up to 250m PoE**, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Interface :
• 6× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3af PoE and 802.3at PoE+)
• Auto-Negotiation/Auto MDI/MDIX
Fan Quantity : Fanless
Installation :
• Desktop

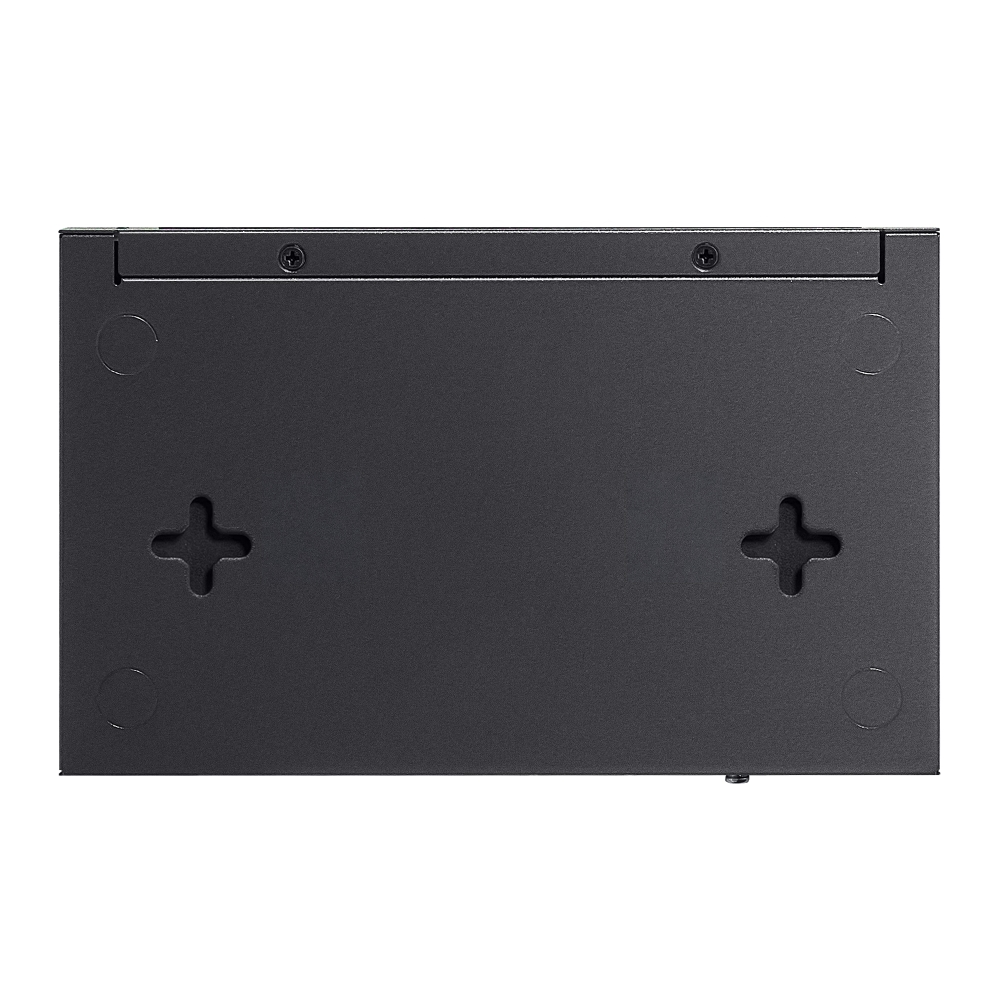

• Wall Mount

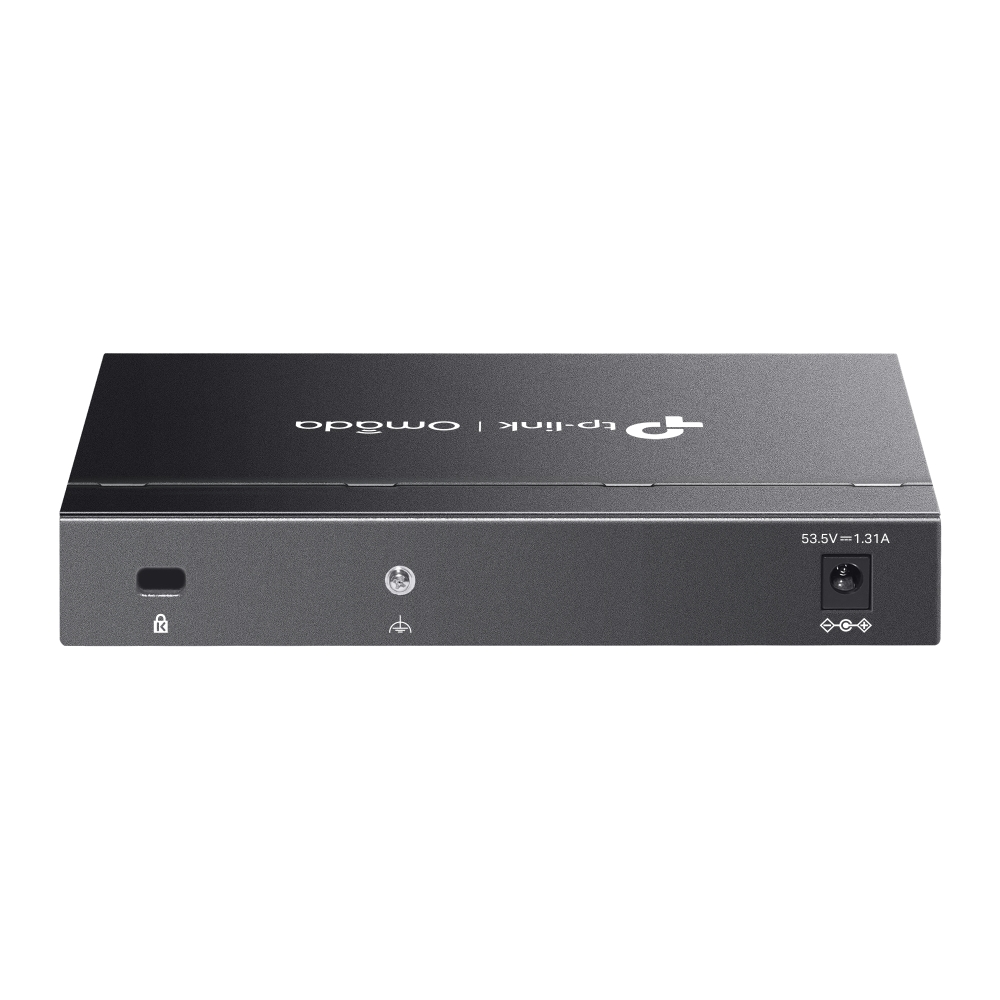

Power Supply : DC Power Adapter (Output: 53.5VDC / 1.31A)
PoE Ports (RJ45)
• Standard: 802.3af PoE and 802.3at PoE+ compliant
• PoE Ports: 4 ports
• PoE Budget: 65W available for all PoE+ ports, 30W max per port
• Fast PoE & Perpetual PoE
• PoE Auto Recovery‡
• Up to 250m PoE transmission distance**
Dimensions ( W x D x H ) : 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
Surge Protection : ±6kV
Switching Capacity : 12 Gbps
Packet Forwarding Rate : 7.4 Mpps
MAC Address Table : 8K
Packet Buffer Memory : 4 Mbit
Jumbo Frame : 15 KB
Package Contents :
• ES206GP
• Power Adapter
• Power Cord
• Rubber Feet
• Installation Guide
|
|
|
|
