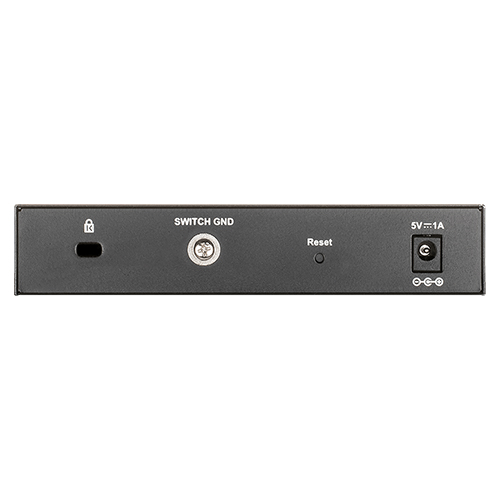

D-LINK DGS-1100-08PV2
SWITCH (สวิตซ์) D-LINK DGS-1100-08PV2 8-port Gigabit Smart Managed PoE (64W) Switch(Port 1-8 Up to 30W per port), Power budget 78Watt
• 8 x 10/100/1000BASE-T PoE ports
• Supports IEEE 802.3at PoE
• 64W PoE power budget
• Compact design for convenient placement
• Fanless design for silent operation
• Innovative D-Link Green energy saving features
• Complete web interface for comprehensive switch management
Hardware Version : A1
Size : Desktop
Number of Ports : 8 10/100/1000 Mbps PoE
Port Functions :
- Auto MDI/MDIX
- IEEE 802.3x Flow Control supports fullduplex mode
- IEEE 802.3az compliant
Switching Capacity : 16 Gbps
Maximum Forwarding Rate : 11.9 Mpps
MAC Address Table Size : 8K Entries
Packet Buffer : 2 Mbits
Flash Memory : 2 Mbytes
PoE Standard : IEEE 802.3af
PoE Capable Ports : Ports 1 to 8 (15.4 watts max. per PoE port)
PoE Power Budget : 64 watts
Standby Mode : 2.0 watts
Maximum Power Consumption :
- 78.8 watts (PoE on)
- 5.2 watts (PoE off)
Power Input :
- 100 to 240 V AC
- 50 to 60 Hz External Power Adapter
MTBF : 708,219 hours
Acoustics : 0 dB(A)
Heat Dissipation : 268.87 BTU/hr
Weight : 0.706 kg (1.553 pounds)
Dimensions :190 x 120 x 38 mm (7.4 x 4.7 x 1.1 inches)
Ventilation :
- Fanless
- Operating Temperature
- 0 to 40 °C (32 to 104 °F)
Storage Temperature : -10 to 70 °C (14 to 158 °F)
Operating Humidity : 10% to 95% non-condensing
Storage Humidity :- 5% to 95% non-condensing
EMI : FCC Class A, CE Class A, VCCI Class A, C-Tick
Safety : cUL, CE LVD
|
|
|
|
