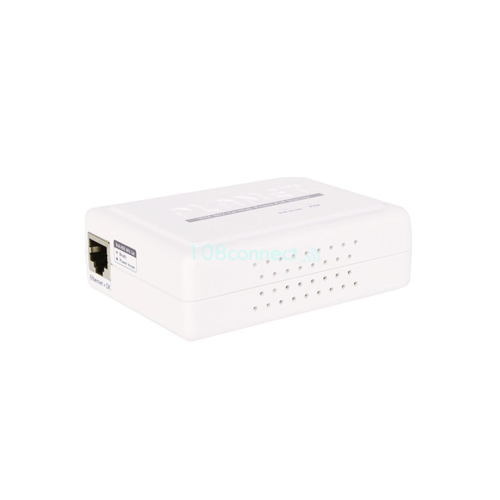

PLANET POE-161 Gigabit High Power over Ethernet Injector

จำนวนครั้งที่เปิดดูสินค้า : 10920 | ความคิดเห็น: 0

เพิ่มเมื่อ: 2013-05-04 15:33:58.0

แก้ไขล่าสุด: 2019-05-14 13:24:05.0

เบอร์โทรติดต่อ: 062-5193997 , 02-4582949

อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
POE-161 IEEE 802.3at Gigabit High Power Over Ethernet Injector -30W (สินค้ารับประกัน 3 ปี)

2290.00 บาท

PLANET POE-161

POE-161 IEEE 802.3at Gigabit High Power over Ethernet Injector-30W

- Complies with IEEE 802.3at Gigabit High Power over Ethernet, Mid-Span PSE

- Provides DC 56V power over RJ-45 Ethernet cable to devices with Ethernet port

- Provides PoE power to 1 IEEE 802.3at compliant device

- Supports PoE Power up to 30 Watts for PoE port

- Auto-detect of PoE IEEE 802.3at equipments, protecting the devices from being damaged by incorrect installation

- Remote power feeding up to 100m

- IEEE 802.3af Splitter devices compatible

Specification

Hardware Specification
Interface	"Data" Input Port：1 x RJ-45 STP "PoE (Data+Power)" Output Port：1 x RJ-45 STP DC 56V Input power socket：1
LED Indicator	System: Power x 1 (Green) PoE Port: PoE in Use x 1 (Green)
Network Cable	10Base-T: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft) 100Base-TX: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft) 1000Base-T: 2-Pair UTP Cat. 5, 5e, 6 up to 100m (328ft) EIA/TIA- 568 100-ohm STP (100m)
Data Rate	10/100/1000Mbps
Dimension (W x D x H)	95 x 70 x 25 mm
Weight	83g
Unit Input Voltage	DC 56V, 0.53A
Power Requirement	100-240V AC, 50/60Hz
Power Consumption	30 Watts max.
Number of device can be powered	1
Power over Ethernet
PoE Standard	IEEE 802.3at Gigabit Power over Ethernet / Mid-Span PSE
PoE Power Output	DC 56V / 30 Watts
PoE Power supply Type	Mid-Span
Power Pin Assignment	4/5(+), 7/8(-)
Standards Conformance
Standards Compliance	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3at Power over Ethernet
Regulation Compliance	FCC Part 15 Class A, CE
Environment
Operating Temperature	0 ~ 50 Degree C
Storage Temperature	-10 ~ 70 Degree C
Humidity	5 ~ 95% (Non-condensing)
