TP-LINK EAP655-Wall AX3000 Wall Plate WiFi 6 Access Point
เพิ่มเมื่อ: 2023-09-15 16:41:37.0
แก้ไขล่าสุด: 2023-10-24 14:41:50.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comEAP655-Wall AX3000 Wall Plate WiFi 6 Access Point, 1× Gigabit RJ45 Port; Downlink: 3× Gigabit RJ45 Port
TP-LINK EAP655-Wall
EAP655-Wall AX3000 Wall Plate WiFi 6 Access Point, 1× Gigabit RJ45 Port; Downlink: 3× Gigabit RJ45 Port
- Blazing-Fast AX3000 WiFi 6 Speeds:: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
- Higher Network Efficiency: Deliver data to more devices at the same time with less lag.
- Complete In-Room WiFi Coverage: Guaranteed strong signals and corner-to-corner WiFi coverage.

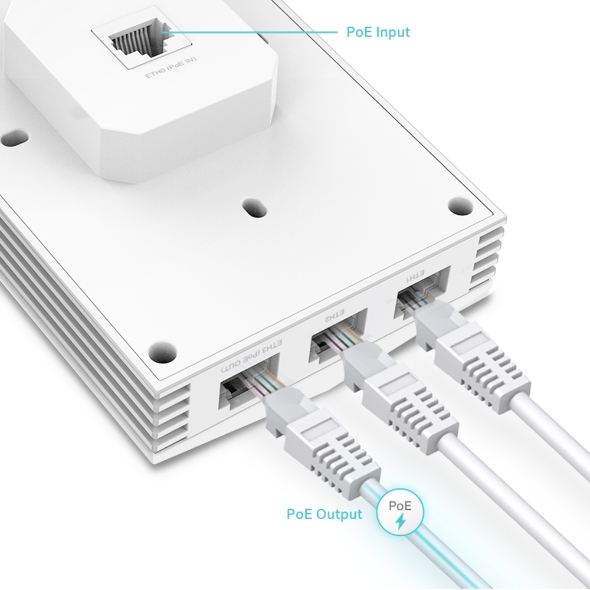

- Multiple Gigabit Ports: Connect multiple devices with three downlink gigabit ports, one with PoE pass-through.

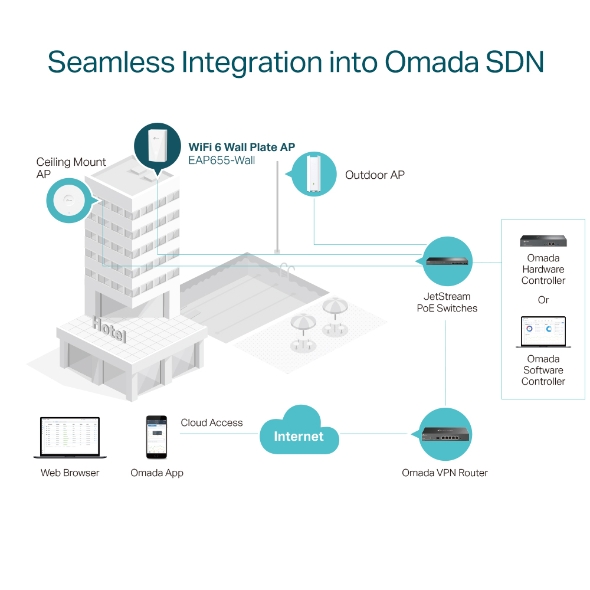

- Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
- Secure Guest Network: Implement multiple authentication options (SMS/Voucher) packed with high-quality wireless security technologies.
- Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.
HARDWARE FEATURES
- Interface
• Uplink: 1× 10/100/1000 Mbps Ethernet Port
• Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE out, and the PoE out feature requires 802.3at PoE+ input.)
- Physical Security Lock No
- Button Reset, LED
- Power Supply 802.3af/at PoE
- Power Consumption
• EU: 12W (802.3at PoE, PoE Out off)
• US: 12.6W (802.3at PoE, PoE Out off)
- Dimensions 143 × 86 × 42.6 mm (5.6 × 3.4 × 1.7 in)
- Antenna 2 Dual-Band Antennas
• 2.4 GHz: 2× 3 dBi
• 5 GHz: 2× 5 dBi
- Mounting Wall Plate Mounting (Kits included)
WIRELESS FEATURES
- Maximum Number of Wireless Clients 100+ △
- Concurrent Clients 100+
- Wireless Standards IEEE 802.11ax/ac/n/g/b/a
- Frequency 2.4 GHz and 5 GHz
- Signal Rate
• 5 GHz: Up to 2402 Mbps
• 2.4 GHz: Up to 574 Mbps
- Wireless Functions
• 16 SSIDs (Up to 8 SSIDs on each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming§
• Beamforming
• Rate Limit
• Load Balance
• Airtime Fairness
• Band Steering
• Reboot Schedule
• Wireless Schedule
• RADIUS Accounting
• MAC Authentication
• Wireless Statistics
• Static IP/Dynamic IP
- Wireless Security
• Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Transmission Power
• CE:
<20 dBm (2.4GHz, EIRP)
<23 dBm (5GHz band1 & 2, EIRP)
<26 dBm (5GHz band3, EIRP)
• FCC:
< 21 dBm (2.4 GHz)
< 21 dBm (5 GHz)
MANAGEMENT
- Omada App Yes
- Centralized Management
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
- Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
- Email Alerts Yes
- LED ON/OFF Control Yes
- Management MAC Access Control Yes
- SNMP v1, v2c, v3
- System Logging Local/Remote Syslog Local/Remote Syslog
- SSH Yes
- Web-based Management HTTP/HTTPS
- L3 Management Yes
- Multi-site Management Yes
- Management VLAN Yes
- Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
- Certification FCC, RoHS
- Package Contents
• AX3000 Wall Plate WiFi 6 Access Point EAP655-Wall
• Installation Guide
• Mounting Kits
- System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
- Environment
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
