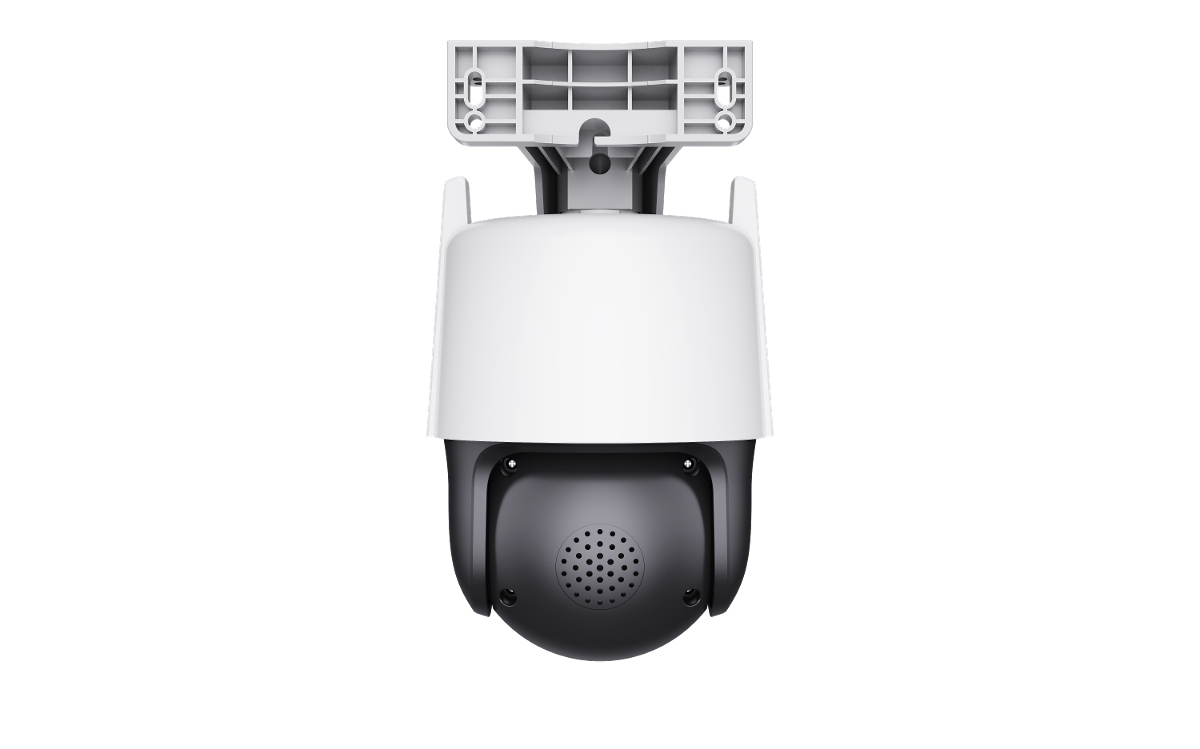

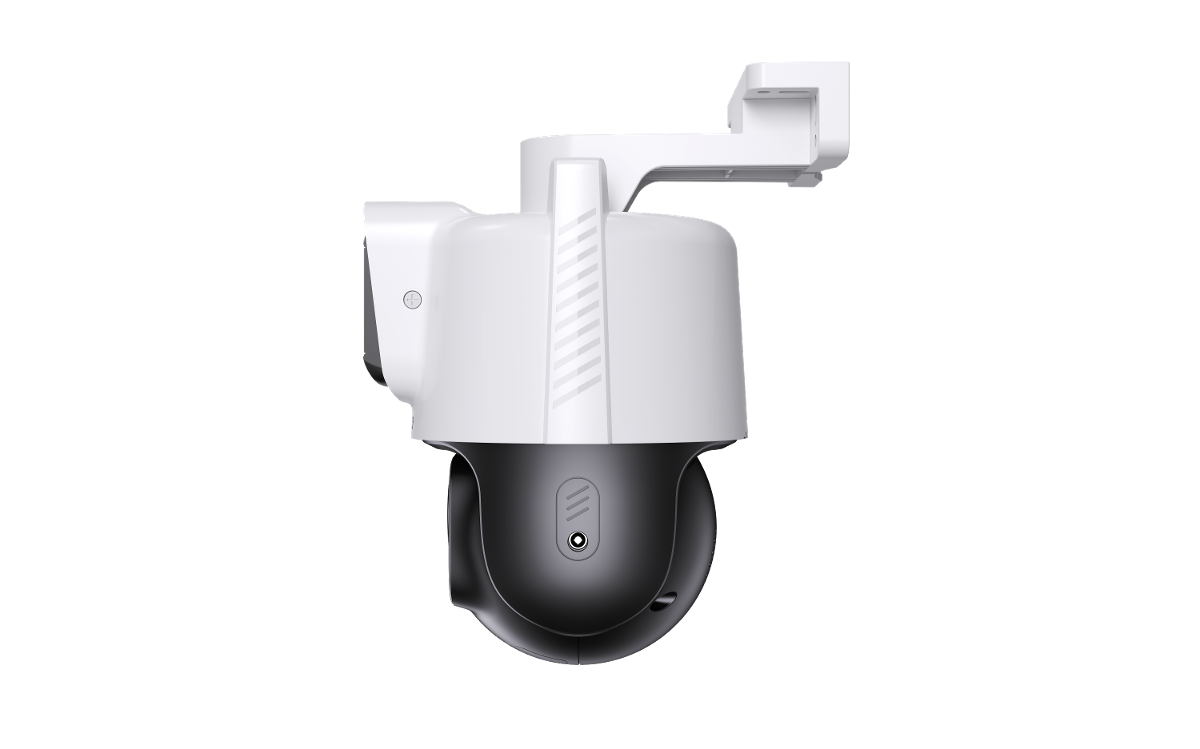

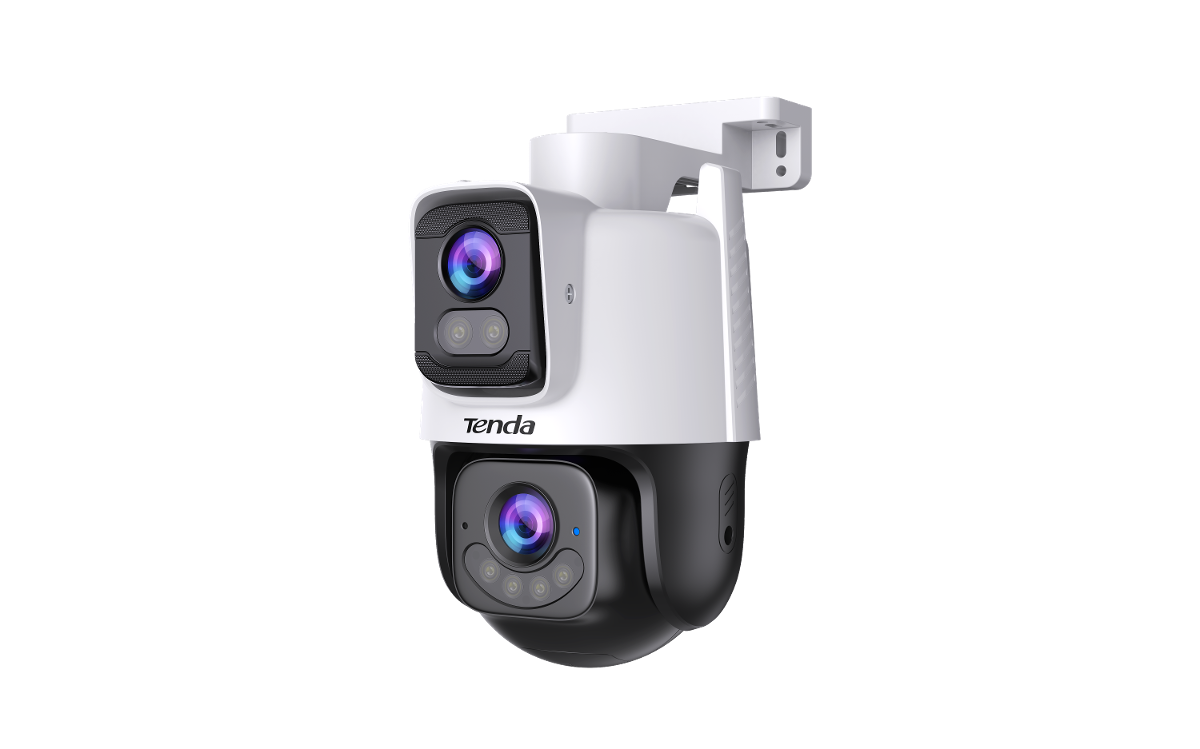

TENDA CH9-WCA 6MP Dual-Lens Linkage Outdoor Internal Antenna Wi-Fi 6 Pan/Tilt IP Camera

 เพิ่มเมื่อ: 2025-03-24 16:44:59.0
 แก้ไขล่าสุด: 2025-03-24 16:48:43.0
 เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
 อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
IP-CAMERA (ไอพีคาเมร่า) TENDA CH9-WCA 6MP Dual-Lens Linkage Outdoor Internal Antenna Wi-Fi 6 Pan/Tilt IP Camera
1590.00 บาท

  TENDA CH9-WCA

IP-CAMERA (ไอพีคาเมร่า) TENDA CH9-WCA 6MP Dual-Lens Linkage Outdoor Internal Antenna Wi-Fi 6 Pan/Tilt IP Camera

Image Sensor : 1/3 Progressive Scan CMOS sensor
Day and Night : ICR type
Bracket Angle Adjustment : Pan:0°to 260°

Focal Length :
Fixed Lens:4mm
PT Lens:6mm
Aperture :
Fixed Lens:F1.6
PT Lens:F1.6
FOV :
Fixed Lens:
Horizontal FOV: 82.3°, Vertical FOV: 44.7°, Diagonal FOV: 97.4°
PT Lens:
Horizontal FOV: 51.8°, Vertical FOV: 28.2°, Diagonal FOV: 60.4°

Supplementary Light : 6 IR Lights, 6 Spotlights
Supplementary Light Distance : Up to 30 m/100 ft (depending on environment)
IR Wavelength : 850nm
Night Vision Mode : Smart Mode, Full Color Mode, Black & White Mode

Video Encoding Format :
Fixed Lens:H.265, H.264
PT Lens:H.265, H.264
Main Stream Resolution :
Fixed Lens:2304 ×1296, 1920 × 1080, 1280 × 720
PT Lens:2304 ×1296, 1920 × 1080, 1280 × 720
Sub Stream Resolution :
Fixed Lens:640 × 360
PT Lens:640 × 360

Frame Rate :
Fixed Lens:1-25fps (2304 × 1296 1-18fps), Default 18fps
PT Lens:1-25fps (2304 × 1296 1-18fps), Default 18fps
Bit Rate :
Fixed Lens:512kbps -- 4096kbps
PT Lens:512kbps -- 4096kbps
Bit Rate Control :
Fixed Lens:CBR,VBR
PT Lens:CBR,VBR

Audio Encoding Format : G.711A, G.711U, AAC
Audio Sampling Rate : 8 kHz
Audio Communication : Two-way Audio, Voice Input

Image Enhancement : DWDR, BLC, HLC, 3D DNR
Privacy Mask : 4 Areas

Ethernet Port : 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port
ONVIF : Support
Protocols : TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP, WebSockets
Web Browser : Plug-in free live view: Chrome, Edge, Opera

Pan Movement Range : 0°--355°
Tilt Movement Range : 0°--90°
Preset : 6
Patrol : Panoramic Patrol, Preset Patrol

Antenna : Internal antenna
Wireless Standard : IEEE 802.11 b/g/n/ax
Transmission Rate : Up to 287Mbps
Channel Width : 20/40 MHz
Modulation : DSSS/OFDM/OFDMA
Frequency Band : 2.4GHz: 2412MHz-2472MHz(CH1-CH13)
Transmit Power : 2.4GHz: <0.1W(EIRP)
Security : 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPA3‐SAE

Smart Detection : Both fixed lens and PT lens are supported motion detection, human detection, vehicle detection, line crossing Detection, intrusion detection
Smart Linkage : Sound&light Alert, Dual-lens Linkage Tracking
DIY Audio : 3 Customized Audios

Audio Input : Built-in MIC
Audio Output : Built-in Speaker
Storage : Built-in Micro SD Card Slot, Up to 512 GB
Reset Button : Support
LED Indicator : Dual Color(red & blue) LED Indicator

Power : 12V DC,1A,Ø5.5mm&Ø2.1mm Power Plug
Material : Plastic

Product Dimension : 203mm x 122mm x 62mm(8.0 ×4.8 × 2.4)
Package Dimension : 240mm x 145mm x 193mm(9.4 ×5.7 × 7.6)
Product Weight : 527g(1.16lb)
With Package Weight : 802g(1.77lb)
Protection Level : IP65
Installation Method : Wall Mounting, Ceiling Mounting, Pole Mounting
Certification : CE, RoHS, FCC, RCM, UKCA

Package Contents :
Camera
Power Adapter (cord length: 3m)
Installation Template
Mounting Bracket
Mounting Accessories Kit
Waterproof Kit
Quick Installation Guide
