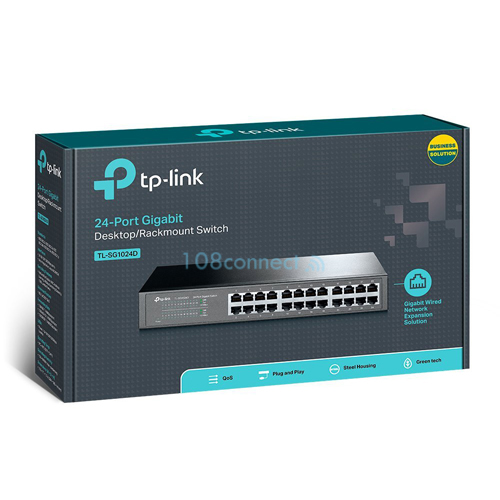

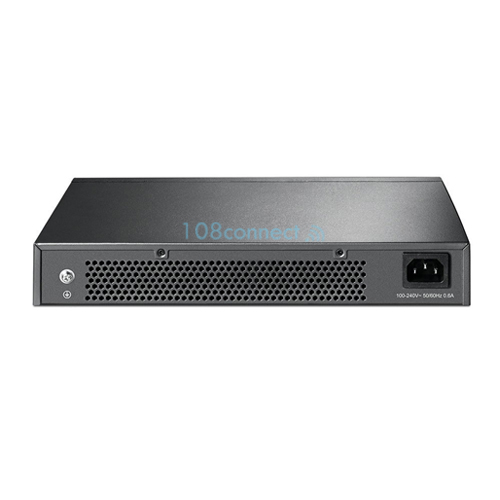

TP-LINK TL-SG1024D 24 Port 10/100/1000 Gigabit Unmanaged Switch Desktop/Rack-mount 13"
เพิ่มเมื่อ: 2012-12-05 12:50:34.0
แก้ไขล่าสุด: 2023-11-15 18:55:05.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comTL-SG1024D 24-Port 10/100/1000Mbps Unmanaged Gigabit Switch, 1U Rack-mount Steel case(เคสเหล็ก)(สินค้ารับประกัน ตลอดอายุการใช้งาน)
TP-LINK TL-SG1024D
TL-SG1024D 24 Port 10/100/1000 Fast Ethernet Gigabit Unmanaged Switch Desktop/Rack-mount 13" Steel case
- Innovative energy-efficient technology saves power up to 40%
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum
throughput
- 48Gbps Switching Capacity
- 10K Jumbo frame improves performance of large data transfers
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Store and forward Switching scheme
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware.
- Desktop and Rack-mountable design
- Plug and Play design simplifies installation
Standards and Protocols :
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface :
24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media :
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity :
Fanless
Physical Security Lock :
No
Power Supply :
100-240VAC, 50/60Hz
Dimensions ( W x D x H ) :
11.6*7.1*1.7 in. (294*180*44 mm)
Mounting :
Rack Mountable
Max Power Consumption :
13.62W(220V/50Hz)
Max Heat Dissipation :
46.44BTU/h
Switching Capacity :
48Gbps
Packet Forwarding Rate :
35.7Mpps
MAC Address Table :
8K
Advanced Functions :
• Isolation Mode: Ports 1-22
• Loop Prevention: Ports 1-24
Jumbo Frame :
10KB
Green Technology :
Yes
Transfer Method :
Store-and-Forward
Package Contents :
24-Port Gigabit Desktop/Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
