IP-COM CPE6S 5GHz 12dBi ipMAX ac Outdoor CPE
เพิ่มเมื่อ: 2024-01-05 17:04:46.0
แก้ไขล่าสุด: 2025-01-31 12:24:09.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comAccess Point IP-COM CPE6S 5GHz 12dBi ipMAX ac Outdoor CPE(สินค้ารับประกัน 3 ปี)
IP-COM CPE6S

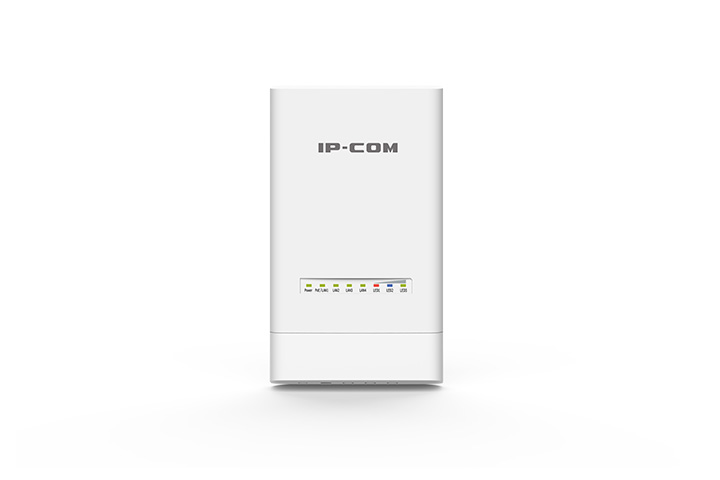

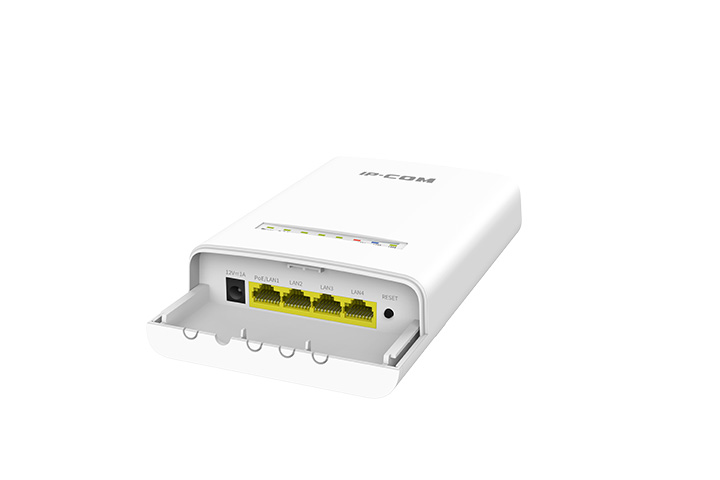

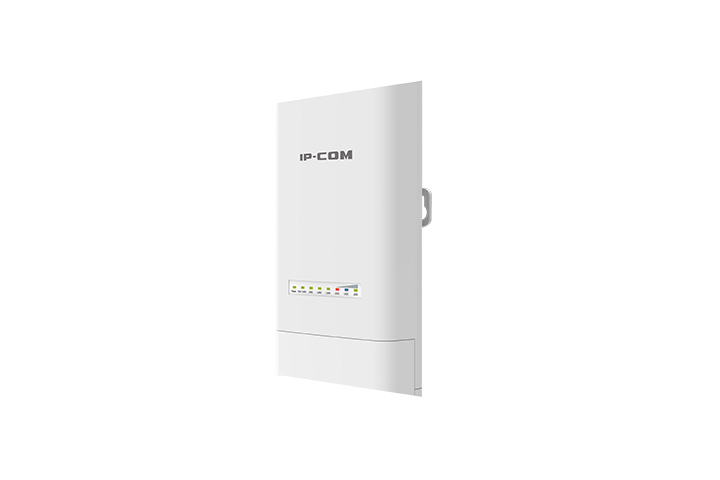

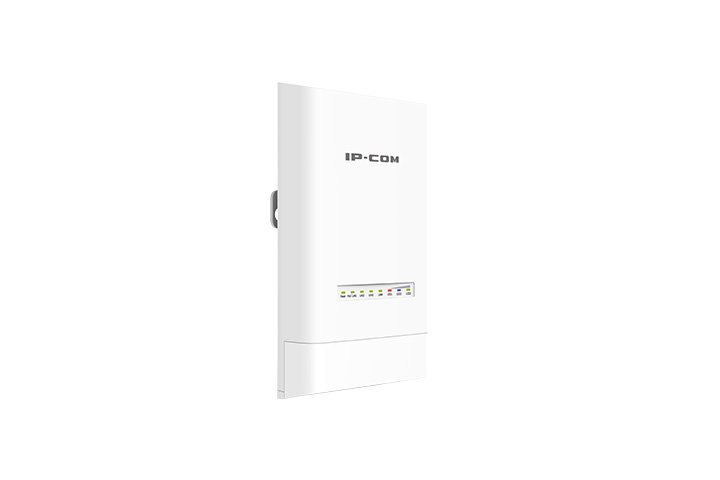

Access Point IP-COM CPE6S 5GHz 12dBi ipMAX ac Outdoor CPE
- 5GHz 11AC 867Mbps
- 12dbi directional antenna
- Four fast ethernet Port
- IP65 waterproof enclosure
- 6000V Lightning Protection
- 12V 1A DC/12V 1A Passive PoE supported
Specification
Product Information
Model CPE6S
Dimensions 193*109*61mm
Deployment Pole/Wall Mount
Application Scenarios PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance
Hardware Features
Frequency Range 5GHz
Compliant Standards IEEE 802.11a/n/ac
Private TDMA Protocol ipMAX
Maximum Wireless Rate 867Mbps
Interfaces 4*10/100Mbps Ethernet Port
Antennas Gain 12dBi
Antenna Beamwidth Horizontal: 30° Vertical: 30° Elevation: 30°
Reset Button 1
Power Consumption 4.7W
Waterproof Level IP65
LED indicator Power,PoE/LAN1,LAN2,LAN3,LAN4LED1,LED2,LED3
Power Method 12V1A Passive PoE
12V 1A DC
Lightning Protection 6000V
PoE 802.3af/at /
Passive PoE Passive power over ethernet via PoE/LAN (+4,5pins; -7,8pins ) up to 60 meters
Voltage range: 11-13V DC
Receive sensitivity 11a 6Mbps -92dBm±1.5dBm
11n MCS7 HT20 -72dBm±1.5dBm
11ac MCS9 HT80 -64dBm±1.5dBm
Software Features
Operating mode AP/Station/WISP/P2MP/WDS Repeater/Router
Enable/Disable Wireless Radio Support
SSID Hidden Support
Wireless Client isolation Support
SSID Isolation Support
Channel Bandwidth 20/40/80MHz
Client Limitation For SSID Support
Wireless Access Control Support
Weak Signal Client Limitation Support
Transmission Power Adjustable power by 1dBm
WMM Capable Support
APSD Capable Support
Wireless Security 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
Transparent Bridge Support
VLAN Tagging for SSID Support
DHCP Server Support
VPN Pass-Through PPTP,L2TP
Remote Web access Support
Schedule Reboot Support
Page Timeout Support
Ping Watchdog Support
Dyndns noip, dyndns.org
Network Diagnoses Ping, Traceroute, Signal Scan
Time&Date Setting Support
Firmware upgrade Support
Backup/Restore Configuration Support
Username Managerment Support
System Log Support
Managed By Controller PC Software -- CPE Controller
Others
Package Contents 1*5GHz 12dBi ipMAX ac Outdoor CPE
1*Power adapter
1*PoE Injector
1*Quick Installation Guide
Operating Temperature -30℃ ~ 60℃
Storage Temperature -40℃ ~ 70℃
Operating Humidity 10%~90% non-condensing
Storage Humidity 10%~90% non-condensing
Default login IP 192.168.2.1
Default Login Username admin
Default Login Password admin
Certifications FCC/CE/RoHS
