TENDA O9 5GHz 11ac Wireless Access Point Gigabit Outdoor CPE 23dBi
เพิ่มเมื่อ: 2021-02-04 10:59:02.0
แก้ไขล่าสุด: 2021-02-04 11:01:47.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comO9 5GHz 11ac Wireless Access Point Gigabit Outdoor CPE 23dBi with Passive PoE, AP/Station/WISP/P2MP/WDS Repeater/Router (สินค้ารับประกัน 5 ปี)

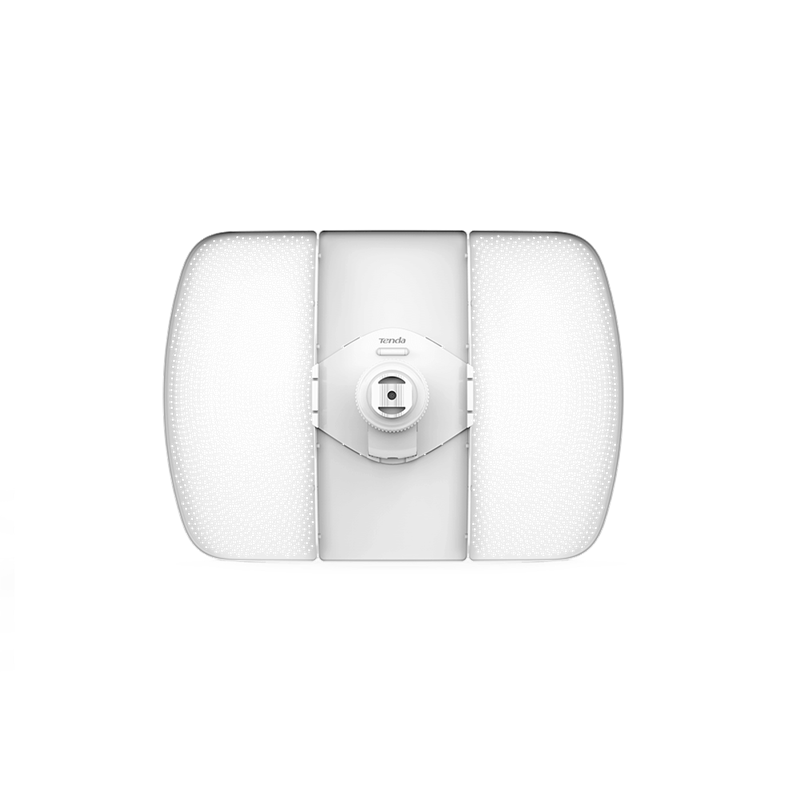

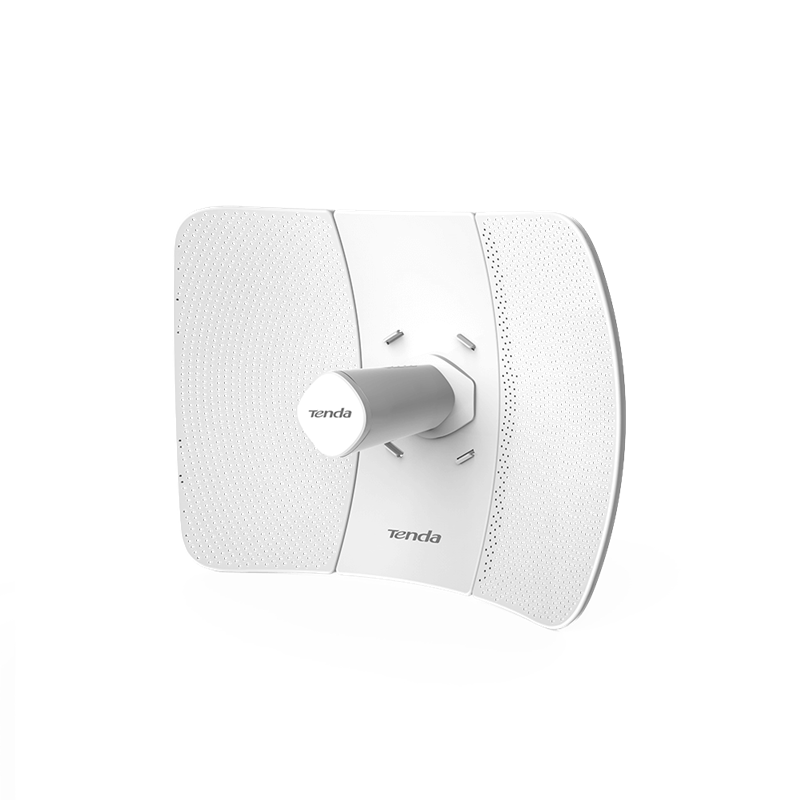

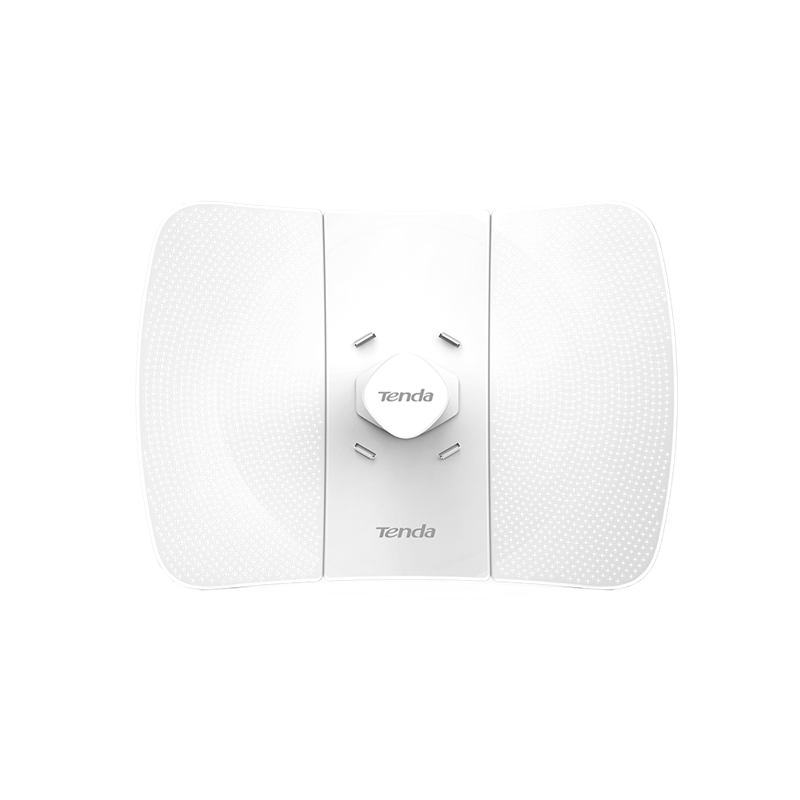

TENDA O9
O9 5GHz 11ac 23dBi Gigabit Wireless Access Point Outdoor CPE with Passive PoE, AP/Station/WISP/P2MP/WDS Repeater/Router
O9 5GHz 11ac 23dBi gigabit outdoor CPE is designed to PtP and PtMP solutions for privated ISP wireless connectivity, CCTV surveillance and data transmission. It features with 23dBi directional dual polarization antenna to provide an efficient way to pick up and maintain a stable long-distance connectivity up to 25km. Adopt of auto-bridging technology, two CPE can connect to each other automatically to make it easy to setup.
Frequency Range5GHz
Compliant StandardsIEEE 802.11a/n/ac
Private TDMA ProtocolTD-MAX
Maximum Wireless Rate867Mbps
Interface1*10/100/1000Mbps Ethernet Port
Antenna gain23dBi
Antenna BeamwidthHorizontal: 10° Vertical: 10°
Reset Button1
Power Consumption7.5W
Waterproof LevelIP65
Dimension391.5*280*223mm

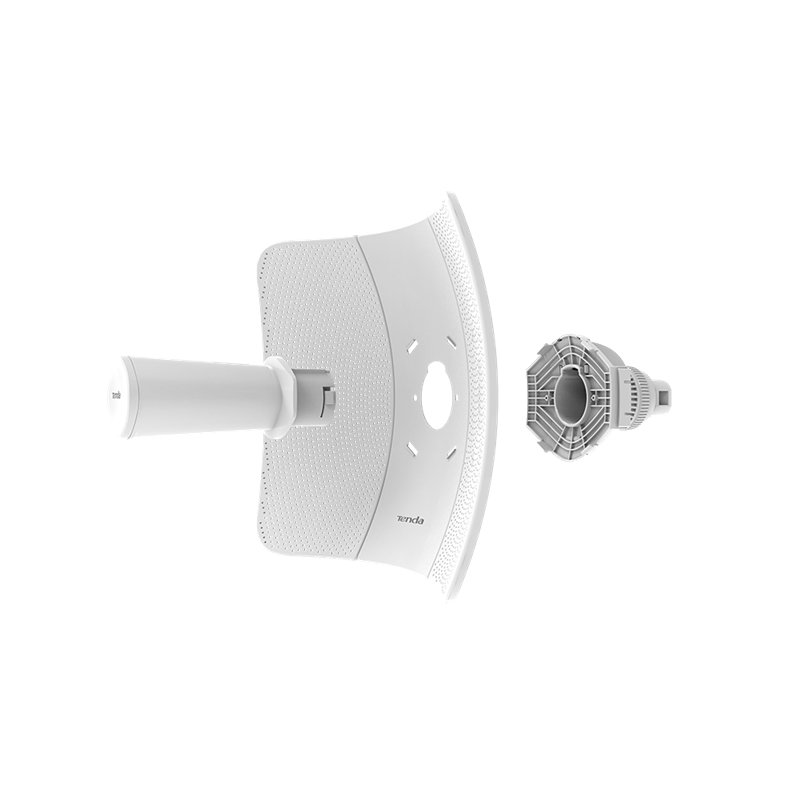

DeploymentPole Mount
Application ScenariosPtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance
LEDPoE/LAN,LED1,LED2,LED3
Power Method24V0.5A Passive PoE
Lightning Protection6000V
Passive PoEPassive power over ethenet via PoE/LAN (+4,5pins
-7,8pins )
Voltage range: 21-25V DC
Reception Sensitivity11a 6Mbps -96dBm±1.5dBm
11n MCS7 HT20 -72dBm±1.5dBm
11ac MCS9 HT80 -65dBm±1.5dBm
Operating ModeAP/Station/WISP/P2MP/WDS Repeater/Router
Enable/Disable Wireless RadioSupport
SSID HiddenSupport
Wireless Client isolationSupport
SSID IsolationSupport
Channel Bandwidth20/40/80MHz
Channel ShiftSupport
Wireless Access ControlSupport
Weak Signal Client LimitationSupport
Transmit PowerAdjustable power by 1dBm
WMM CapableSupport
APSD CapableSupport
Wireless Security64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
Package Content
1*5GHz 11ac 23dBi Gigabit Outdoor CPE O9
1*PoE Power Adapter
1*Quick Installation Guide
