PLANET WNAP-7300 5GHz 802.11a/n 300Mbps Wireless LAN Outdoor Access Point

จำนวนครั้งที่เปิดดูสินค้า : 11004 | ความคิดเห็น: 0

PLANET WNAP-7300 5GHz 802.11a/n 300Mbps Wireless LAN Outdoor Access Point

เพิ่มเมื่อ: 2014-07-03 12:32:33.0

แก้ไขล่าสุด: 2019-03-28 17:10:10.0

เบอร์โทรติดต่อ: 062-5193997 , 02-4582949

อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
5GHz IEEE802.11a/n 300Mbps Wireless LAN Outdoor AP, Client, Client CPE (WISP), WDS, AP+WDS, 16dBi dual-polarity Antenna (สินค้ารับประกัน 3 ปี)

6500.00 บาท

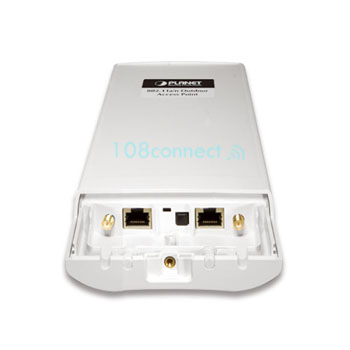

PLANET WNAP-7300

5GHz IEEE802.11a/n Wireless LAN Outdoor AP, Client, Client CPE (WISP), WDS, AP+WDS, 16dBi dual-polarity Antenna

PLANET has launched the latest outdoor wireless solution – the WNAP-7300 wireless LAN outdoor CPE AP/Router, which provides higher transmit power, better performance, and less interference. The WNAP-7300 is compatible with IEEE 802.11a/n, and the data rate is up to 300Mbps in 802.11n mode. The WNAP-7300 not only has built-in 16dBi dual-polarity antenna but also reserves two external antenna connectors to allow stronger antenna upgrade. Therefore, the WNAP-7300 is quite suitable for widely open space wireless applications.

The WNAP-7300 supports multiple operation modes: AP, AP Client, and WDS to conveniently configure versatile solutions in a wide range of wireless scenarios. It also supports WISP mode so CPE users could easily connect to internet via WISP provider or connect to a wired network.

In aspect of security, besides 64/128/152 bits WEP encryption, the WNAP-7300 integrates WPA / WPA2, WPA-PSK / WPA2-PSK and 802.1x authority to secure and protect your wireless LAN. Furthermore, with user-friendly Web and SNMP based management interface, the WNAP-7300 is easily managed and configured remotely.

The WNAP-7300 is perfectly suitable to be installed in outdoor environments and exposed locations. With its IP55 casing protection, the WNAP-7300 can perform normally under rigorous weather conditions including heavy rain and wind. With the proprietary Power over Ethernet (PoE) design, the WNAP-7300 can be easily installed in the areas where power outlets are not available. It is the best way to use the WNAP-7300 to build outdoor wireless access applications between buildings on campuses, business communities, rural areas and more.

- IEEE 802.11a/n standards compliant
- 5GHz wireless networks deliver widely and better connections with less interference
- Multiple antenna choices: Built-in 16dBi dual-polarity antenna, and two external antenna connectors (reverse SMA connector)
- Adopts 2T2R MIMO technology for higher performance up to 300Mbps in 802.11n mode
- IP55 case protection against rigorous weather conditions
- Wide range of temperature tolerance for low or high temperature environment
- High Transmit Output Power up to 400mW with multiple adjustable transmit power control
- Power over Ethernet design (with proprietary injector)
- Multiple Wireless Access Modes: AP, Client, Client CPE (WISP), WDS, AP+WDS
- Supports 64/128/152-bit WEP and 802.1X, WPA, WPA2, WPA&WPA2, WPA-PSK, WPA2-PSK, and WPA-PSK&WPA2-PSK Authentication
- Firewall supports IP/Port Filtering
- User-friendly Web and SNMP based management interface

Specifications

Product
Standard support	IEEE 802.11a/n IEEE 802.3u
Interface	Wireless IEEE802.11a/n LAN: 2 x 10/100Base-TX, auto-MDI/MDIX
Modulation	OFDM with BPSK, QPSK, 16-QAM, 64-QAM
Antenna	Internal (default): 16dBi dual-polarity Antenna Vertical Port HPBW (YZ Plane /H-Plane)：36 degrees (XZ Plane /E-Plane)：15 degrees Horizontal Port HPBW (YZ Plane /E-Plane)：38 degrees (XZ Plane /H-Plane)：17 degrees External: RP-SMA Connector x 2 *internal & external antenna switchable by software
Receiver Sensitivity	IEEE 802.11a: -89 dBm @ 6 Mbps -88 dBm @ 9 Mbps -87 dBm @ 12 Mbps -86 dBm @ 18 Mbps -83 dBm @ 24 Mbps -79 dBm @ 36 Mbps -75 dBm @ 48 Mbps -73 dBm @ 54 Mbps IEEE 802.11n: HT20 MCS0~MCS7 ≦ -89dBm HT40 MCS0~MCS7 ≦ -85dBm HT20 MCS8~MCS15 ≦ -83dBm HT40 MCS8~MCS15 ≦ -80dBm
Max. Output Power	FCC 802.11a: 24 ± 2dBm 802.11n: 23 ± 2dBm (HT20/40) ETSI <20dBm (EIRP)
Output Power Control	5 levels adjustable: Full = 24dBm 50% = 21dBm 25% = 18dBm 12.5% = 15dBm Min. = 12dBm
Data Rate	802.11a: 54/48/36/24/18/12/9/6Mbps 802.11n: HT20/40 MCS0~15 (6.5Mbps to 300Mbps)
Frequency Range	FCC: 5725~5850 MHz CE: 5470~5725 MHz (DFS band)
Wireless Security	64/128/152-bits WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X
Wireless Access Mode	AP, Client, Client CPE (WISP), WDS, AP+WDS
Environmental Protection Rating	IP55
Dimension (W x D x H)	110.98 x 255.6 x 47.65 mm
Power Adapter	Up to 24V DC (passive PoE)
Operating Environment	Temperature: -20 ~ 70 degrees C Humidity: 10 ~ 95% non-condensing
Certification
EMI	FCC:part 15, subpart B&C CE:EN301 893(5G)
EMS	CE:EN301 489-1/17
Safety	CE:EN60950
DFS	CE:EN301893 V1.5.1 (DFS-3)
