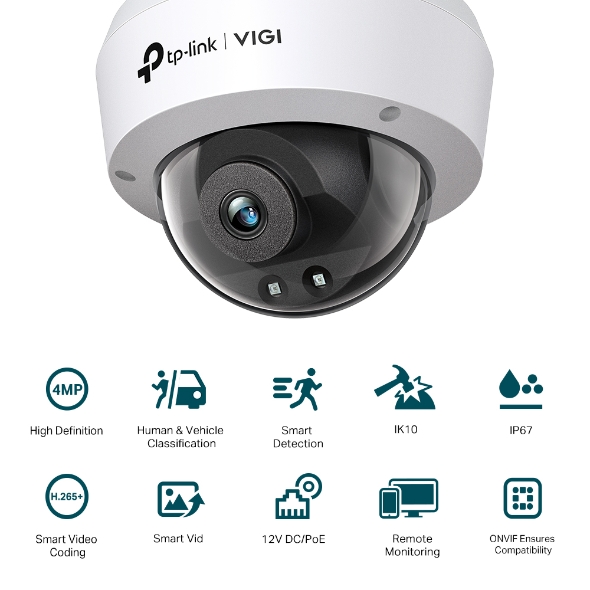

TP-LINK VIGI C240I VIGI 4MP IR Dome Network Camera

TP-LINK VIGI C240I VIGI 4MP IR Dome Network Camera

กล้องวงจรปิด VIGI C240I VIGI 4MP IR Dome Network Camera(สินค้ารับประกัน 3 ปี)

4MP Super-High Definition: The VIGI C240I camera comes with 4MP — more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
IK10 Vandal-Proof & IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
2.8/4 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C240I comes with two different lens types to better suit your security needs.
Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.

Specifications

CAMERA
Image Sensor    1/3” Progressive Scan CMOS
Shutter Speed    1/3 to 1/10000 s
Slow Shutter    Yes
Minimum Illumination    Color: 0.1 Lux; 0 Lux with IR
Day/Night Mechanism    IR Cut Filter
Day/Night Switch    Unified/ Scheduled/ Auto
Lens    2.8 mm/ 4 mm
Aperture    2.8 mm: F2.2
4 mm: F2.2
Lens Mount    M12
Viewing Angle    2.8mm: 88.8°/48.9°/106.5°(H/V/D)
4mm: 75.1°/41.5°/88.7°(H/V/D)
IR Working Distance    30m
Digital Noise Reduction    3D DNR
WDR    DWDR
Weatherproof Rating    IP67
LENS
Type    Fixed Focal Lens
Focal Length    2.8 mm/4 mm
Aperture    2.8 mm: F2.2
4 mm: F2.2
FOV    2.8 mm:
Horizontal FOV: 88.8°, Vertical FOV: 48.9°, Diagonal FOV: 106.5°

4 mm:
Horizontal FOV: 75.1°, Vertical FOV: 41.5°, Diagonal FOV: 88.7°
Lens Mount    M12
DORI Distance    2.8 mm:
Detect:60 m (197 ft)
Observe: 25 m (82 ft)
Recognize: 12 m (39 ft)
Identify: 6 m (20 ft)

4 mm:
Detect: 80 m (262 ft)
Observe:33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
VIDEO
Max. Resolution    2560 × 1440
Main Stream    Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream    Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 640x480,352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control    CBR, VBR
Video Compression    Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type    Main Profile/High Profile
H.264+    Main Stream Supported
H.265 Type    Main Profile
H.265+    Main Stream Supported
Video Bit Rate    Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
ILLUMINATOR
IR LED    Quantity: 2
Range: 30m
Wavelength: 850nm
White LED    N/A
Illuminator On/Off Control    Auto/Scheduled/Always on/Always off
ANGLE ADJUSTMENT (MANUAL)
Range    Pan: 0° to 355°
Tilt: 0° to 75°
Image Settings    Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement    BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range    DWDR
SNR    ≥ 52 dB
Image Parameters Switch    Yes
Privacy Mask    Up to 4 Masks
ROI    1 Region
OSD Setting    Yes
AUDIO
Audio Communication    N/A
Audio Input    N/A
Audio Output    N/A
Audio Compression    N/A
Audio Sampling Rate    N/A
Environment Noise Filtering    N/A
Audio Bit Rate    N/A
NETWORK
Security    Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol    TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS
API    ONVIF
Simultaneous Live View    3 Main Streams & 3 Sub-Streams
Client    VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser    Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud    Yes
ONVIF    Yes
INTERFACES
Network Interface    1 RJ45 10/100M Self-Adaptive Ethernet Port
Alarm    N/A
Reset Button    N/A
Power    DC Power Port
Button    -
Video Output    -
On-board Storage    N/A
Built-in Microphone    N/A
Built-in Speaker    N/A
Audio    N/A
ALARM AND EVENT MANAGEMENT
Smart Event    Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event    Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage    Message Push
Linkage Method    N/A
Output Notification    Message Push
GENERAL
Package Contents    VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Operating Temperature    -30–60 °C
Storage Temperature    -40–60 °C
Storage Humidity    95% or Less (Non-Condensing)
Operating Humidity    95% or Less (Non-Condensing)
Dimensions( H X W X D )    115 × 115 × 86 mm
Material    Plastic
General Features    Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight    0.27 Kg
Gross Weight    0.45 Kg
Power Consumption    12V DC: Max 5W
PoE: Class 0
Power Supply    12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
Vandal Resistant    IK10
Protection    IP67, IK10
Product Dimensions (L x W x H)    115× 86× 115 mm
Certifications    CE/BSMI/VCCI/ONVIF
VIDEO/IMAGE
Video Compression    Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Frame Rate & Resolutions    Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480,352x288, 320x240
Max. Resolution    4MP (2560 × 1440)
Video Streaming    Main Stream
Sub-Stream
Image Settings    Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement    BLC/3D DNR/HLC/SmartIR
Video Bit Rate    64 Kbps to 4 Mbps
Day/Night Switch    Day/Night/Auto/Schedule
SMART FEATURE-SET
Smart Event    Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event    Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage Method    Trigger Notification: ONVIF, HTTPS
Region of Interest    1 Region
