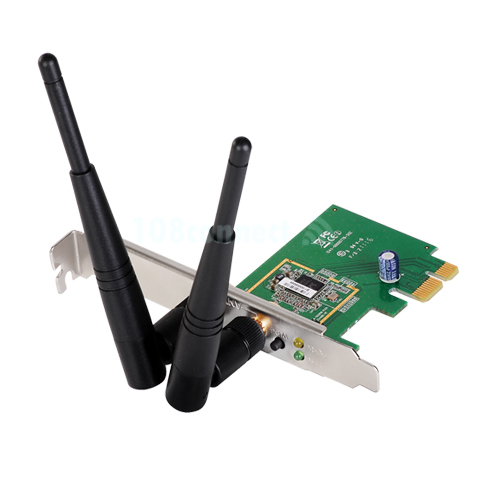

EDIMAX EW-7612PInV2 N300 Wireless PCI Express Adapter
เพิ่มเมื่อ: 2020-03-18 16:16:59.0
แก้ไขล่าสุด: 2020-11-11 15:42:19.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comEW-7612PIn V2 N300 Wireless PCI Express Adapter Wireless data rates up to 300Mbps(สินค้ารับประกันตลอดอายุการใช้งาน)
EDIMAX EW-7612PInV2
EW-7612PIn V2 N300 Wireless PCI Express Adapter Wireless data rates up to 300Mbps
- Complies with 802.11b/g/n wireless standards
- Wireless data rates up to 300Mbps
- Features EZmax multi-language setup wizard
- Wireless speed up to 12 times faster and coverage 5 times further
- Features a hardware WPS (Wi-Fi Protected Setup) button
- Includes a low-profile bracket for small computers
Interfaces
- 1 x PCI Express interface
- 1 x Link LED
- 1 x Tx/Rx LED
- 1 x Hardware WPS button
- 2 x RP-SMA connector
- 2 x High-gain 3dBi detachable antenna
Standards
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11n
Data Rates
- 11b: 1/2/5.5/11Mbps
- 11g:6/9/12/24/36/48/54Mbps
- 11n (20MHz): MCS0-15 (up to 144Mbps)
- 11n (40MHz): MCS0-15 (up to 300Mbps)
Frequency Band
- 2.4000 to 2.4835GHz
(Industrial Scientific Medical Band)
Output Power
- 11n:12dBm±1.5dBm
- 11g: 12dBm±1.5dBm
- 11b: 16dBm±1.5dBm
Temperature
- Operating: 32 - 103°F (0-40°C)
- Storage: -4 - 149°F (-20 - 65°C)
Wireless Security
- 64/128-bit WEP, WPA, WPA2 & IEEE 802.1x
- Hardware & Software WPS configuration
Installation
- Multi-language EZmax Setup Wizard
Humidity
- Operating: 10 - 90% (non-condensing)
- Storage: max. 95% (non-condensing
- System Requirements
- Windows/XP/Vista/7/8
Dimensions
- 22 x 121 x 88 mm (without antenna)
Certifications
- CE, FCC
