IP-COM CPE6S 5GHz 12dBi ipMAX ac Outdoor CPE
เพิ่มเมื่อ: 2025-01-03 14:24:35.0
แก้ไขล่าสุด: 2025-01-03 14:31:38.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comAccess Point Outdoor IP-COM (CPE6S) 5GHz 12dBi ipMAX ac Outdoor CPE (สินค้ารับประกัน 3 ปี)
IP-COM CPE6S

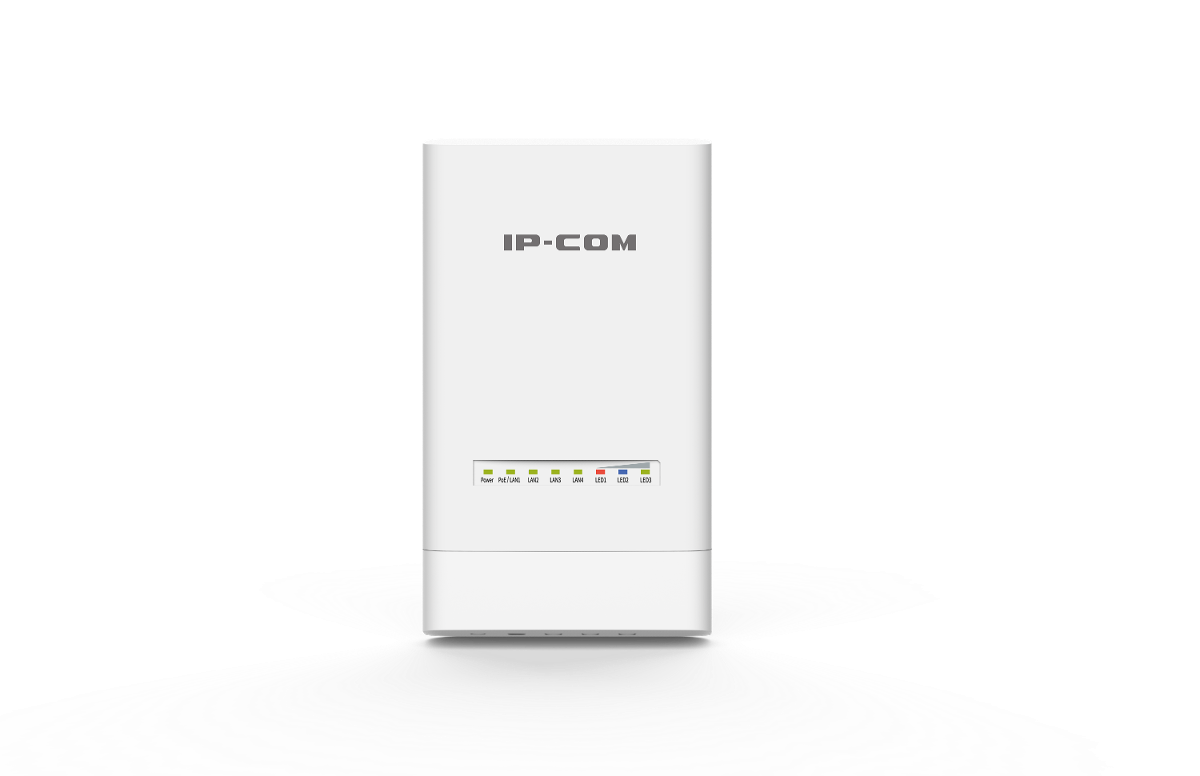

Access Point Outdoor IP-COM (CPE6S) 5GHz 12dBi ipMAX ac Outdoor CPE
- Pre-configured & plug and play（kit）
- 5GHz 11AC 867Mbps
- 12dbi directional antenna
- Four fast ethernet Port
- IP65 waterproof enclosure
- 6000V Lightning Protection
- 12V 1A DC/12V 1A Passive PoE supported
Overview
CPE6S 5GHz Outdoor CPE is designed to PtP&P2MP solutions for video surveillance transmission and wireless broadband access. Adopts of 11ac wireless technology, the maximum wireless rate can be up to 867Mbps. It features with 12dBi dual polarization directional antenna to provide an efficient way to pick up and maintain a stable long range connection.
5+km transmission Range
CPE6S adopts of internal power amplifier and 12dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network up to 5km.
Model : CPE6S
Frequency Range : 5GHz
Compliant Standards : IEEE 802.11a/n/ac
Private TDMA Protocol : ipMAX
Maximum Wireless Rate : 867Mbps

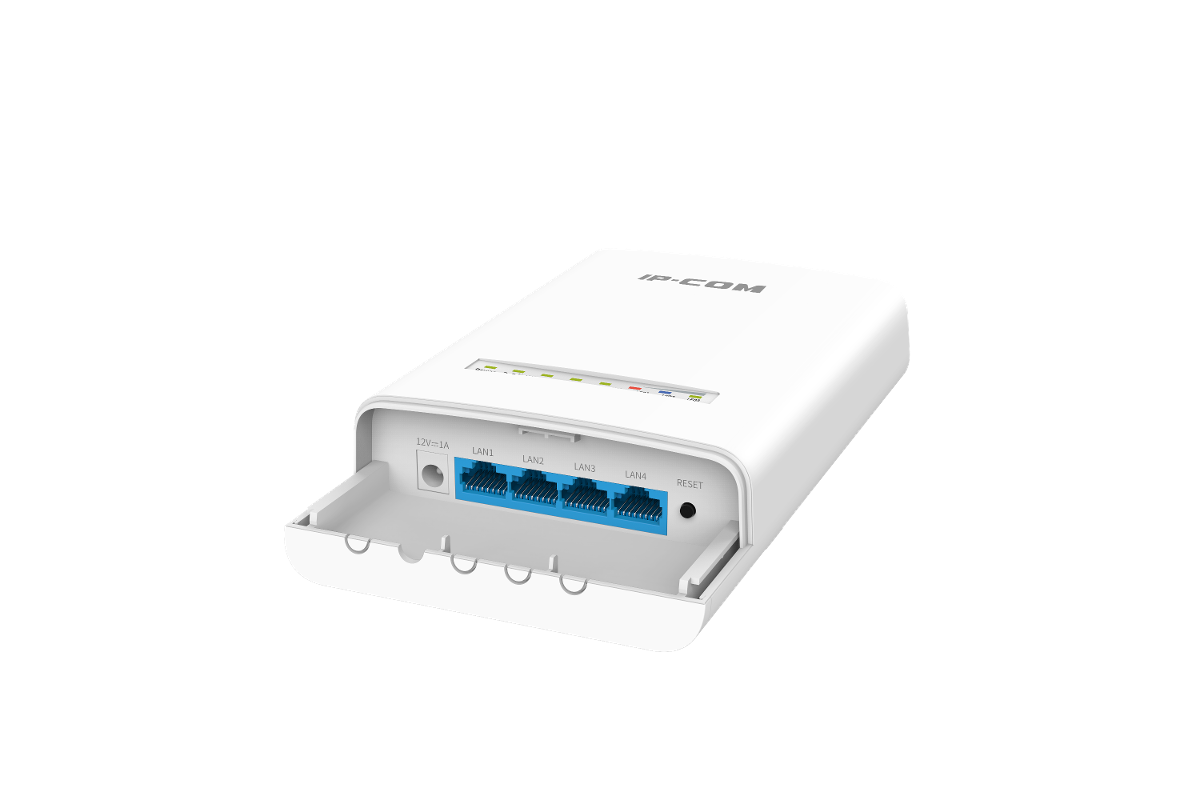

Interfaces : 4*10/100Mbps Ethernet Port
Antennas Gain : 12dBi
Antenna Beamwidth : Horizontal: 30° Vertical: 30° Elevation: 30°
Reset Button : 1
Power Consumption : 4.7W
Waterproof Level : IP65
LED indicator : Power,PoE/LAN1,LAN2,LAN3,LAN4LED1,LED2,LED3
Power Method :
12V1A Passive PoE
12V 1A DC
Lightning Protection : 6000V
Passive PoE : Passive power over ethernet via PoE/LAN (+4,5pins; -7,8pins ) up to 60 meters
Voltage range: 11-13V DC
Receive sensitivity :
11a 6Mbps -92dBm±1.5dBm
11n MCS7 HT20 -72dBm±1.5dBm
11ac MCS9 HT80 -64dBm±1.5dBm
Dimensions : 193*109*61mm

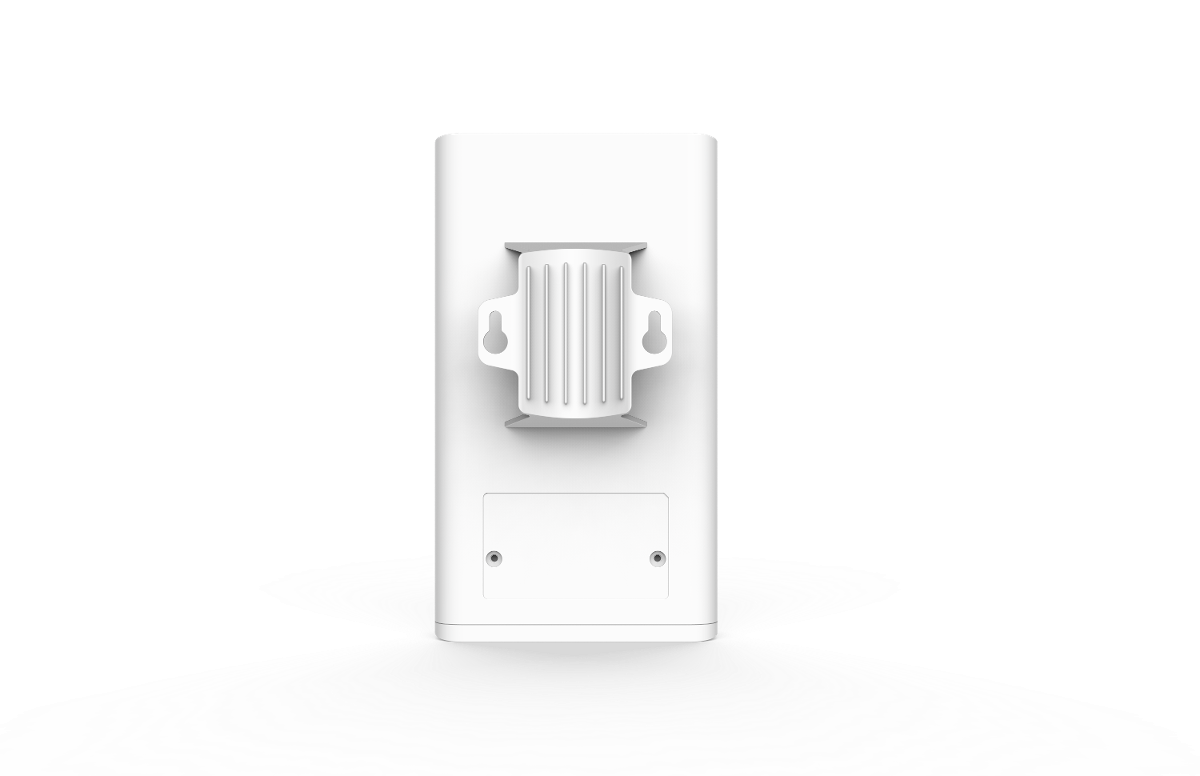

Deployment : Pole/Wall Mount
Application Scenarios : PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance
Operating mode : AP/Station/WISP/P2MP/WDS Repeater/Router
Wireless Security : 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
Package Contents :
1*5GHz 12dBi ipMAX ac Outdoor CPE
1*Power adapter
1*PoE Injector
1*Quick Installation Guide
Operating Temperature : -30℃ ~ 60℃
Storage Temperature : -40℃ ~ 70℃
Operating Humidity : 10%~90% non-condensing
Storage Humidity : 10%~90% non-condensing
Default login IP : 192.168.2.1
Default Login Username : admin
Default Login Password : admin
Certifications : FCC/CE/RoHS
