TENDA TEG1126P-24-410W 24GE+2SFP Ethernet Switch With 24-Port PoE
เพิ่มเมื่อ: 2022-12-25 18:38:43.0
แก้ไขล่าสุด: 2023-04-25 15:10:47.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comTEG1126P-24-410W 24GE+2SFP Ethernet Switch With 24-Port PoE(สินค้ารับประกัน 5ปี)
TENDA TEG1126P-24-410W

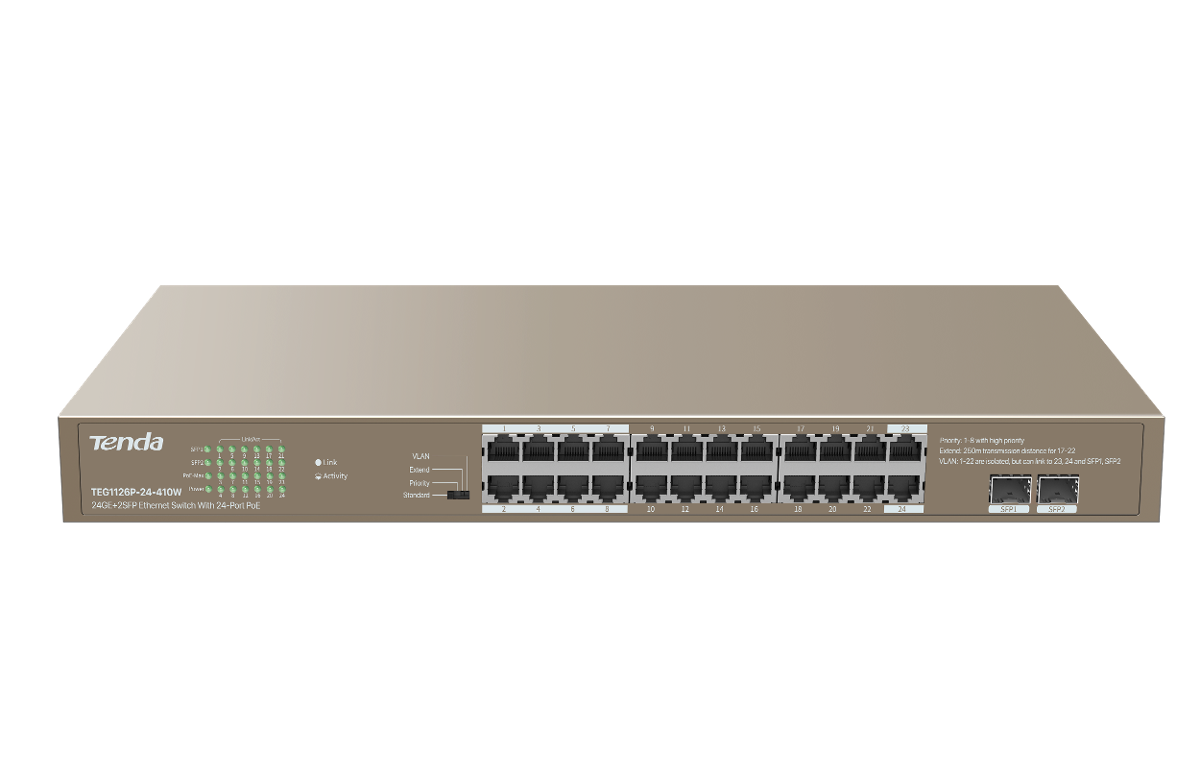

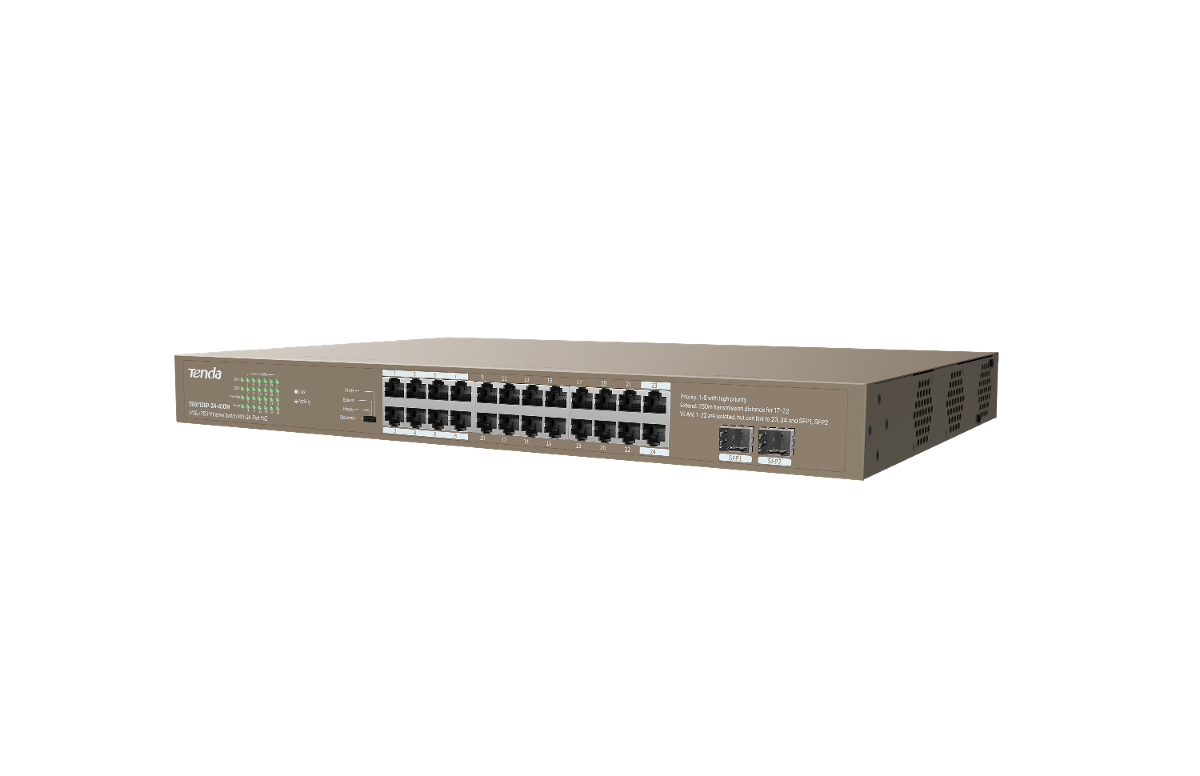

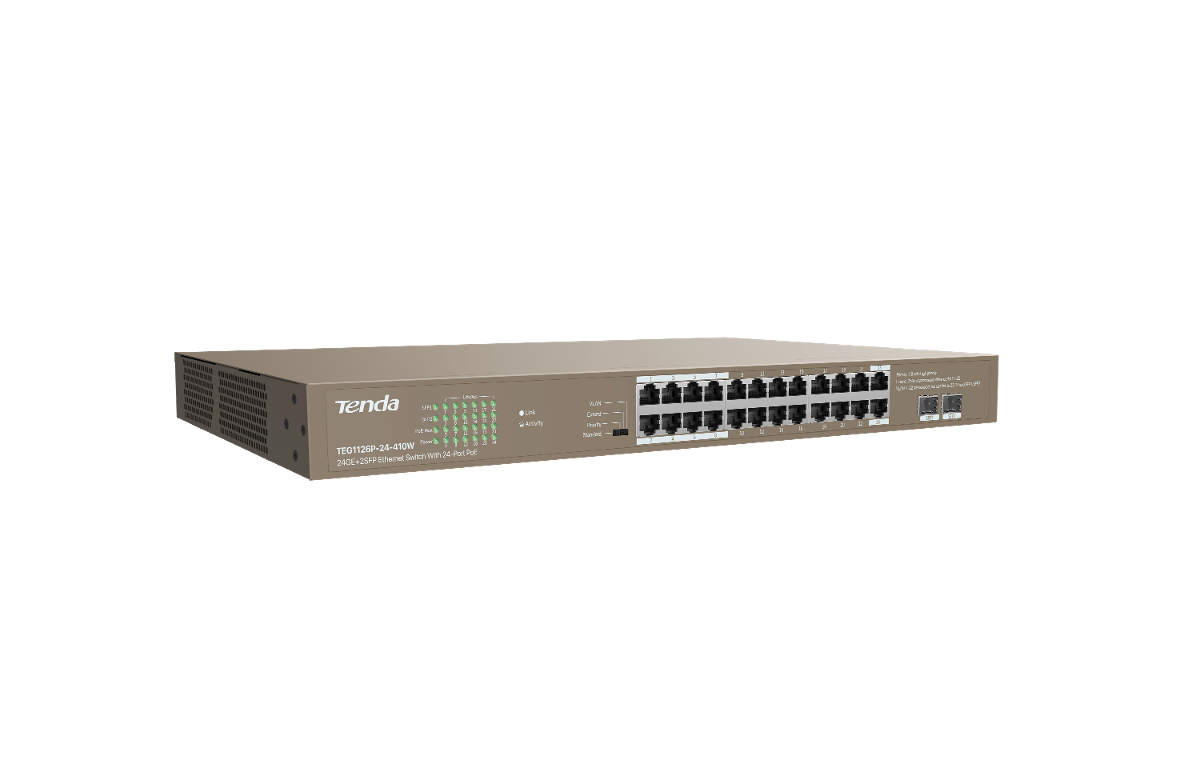

TEG1126P-24-410W 24GE+2SFP Ethernet Switch With 24-Port PoE
TEG1126P-24-410W is a unmanaged PoE switch independently designed by Tenda. Compliant with IEEE 802.3af and IEEE 802.3at standards, it can identify PoE-powered devices intelligently. With a maximum PoE power output of 370W, and 30W for a single port, it can supply power when transmitting data with APs, IP cameras, and IP phones. The switch supports 4 working modes, including standard, priority, extend and VLAN modes, is an ideal choice for SMBs, hotels, schools, factories with video surveillance and wireless networking requirements.
Hardware
Network standards : IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3x/ IEEE 802.3af/IEEE 802.3at
LED Indicator :
- 24 * Link/Act LEDs
- 2 * SFP LED
- 1 * PoE-MAX LED
- 1 * Power LED
Interfaces : 24*10/100/1000 Base-T ports(Data/Power)
Transmission media : Recommended: CAT5/5e UTP or better
Fan quantity : 2
Dimension : 440.0mmx284.0mmx44.0mm
Level of protection :
- Lightning protection for ports: 6kV
- Lightning protection for power: 6kV
- ESD:
- Air discharge: ±10kV
- Contact discharge: ±8kV
Forwarding mode ; Store-and-forward
Switch capacity : 48 Gbps
Packet forwarding rate : 35.7Mpps
Buffer : 2M
MAC address table : 8K
Jombo frame : N/A
PoE budget :
- Single port: AF: 15.4W, AT: 30W
- Whole device: 370W
Input voltage : 100-240V AC 50/60Hz
Mounting :
- Desktop mounting: support
- Wall mounting: support
- Rack mounting : support
Environment :
- Operating Temperature: 0℃~45℃
- Storage Temperature: -40℃~70℃
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
