| EnGenius ECW220 AX1800 Cloud Managed 802.11ax WiFi 6 2×2 Indoor Wireless Access Point
EnGenius ECW220 AX1800 Cloud Managed 802.11ax WiFi 6 2×2 Indoor Wireless Access Point
เพิ่มเมื่อ: 2023-06-28 11:46:12.0
แก้ไขล่าสุด: 2023-11-15 12:26:41.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comแอคเซสพอยซ์ ECW220 AX1800 Cloud Managed 802.11ax WiFi 6 2×2 Indoor Wireless Access Point
EnGenius ECW220
ECW220 AX1800 Cloud Managed 802.11ax WiFi 6 2×2 Indoor Wireless Access Point
Product Highlight
EnGenius Cloud Managed Wi-Fi 6 2×2 Indoor Access Point ECW220 supports dual concurrent 802.11ax Wi-Fi 6 architecture, delivering supercharged speeds up to 1,200 Mbps (5 GHz), and up to 574 Mbps (2.4 GHz). With WPA3 & WPA2-AES authentication support, remote monitoring & troubleshooting, and Mesh Wireless Support for optimized signal quality, it's easy to set up and manage an unlimited number of APs with the EnGenius Cloud App.
- Dual concurrent 802.11ax Wi-Fi 6 architecture & backward-compatible.
- Supercharged speeds up to 1,200 Mbps (5 GHz) & up to 574 Mbps (2.4 GHz).
- 1 GB 802.3af PoE port for easy placement up to 328 feet from a power source.
- WPA3 & WPA2-AES authentication support.
- Cloud Managed with AP & Mesh mode.
- Quick-scan device register & configuration and remote monitoring & troubleshooting.
- Cloud manage an unlimited number of APs from anywhere with the EnGenius Cloud App.
- Mesh wireless support simplifies setup, optimizes signals, and enables self-heals.
Standards
IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz
Backward compatible with 802.11a/b/g/n/ac
Processor
Qualcomm® Quad-Core CPU ARM Cortex A53s @ 1.0GHz
Antenna
2 x 2.4 GHz: 3 dBi
2 x 5 GHz: 3 dBi
Integrated Omni-Directional Antenna

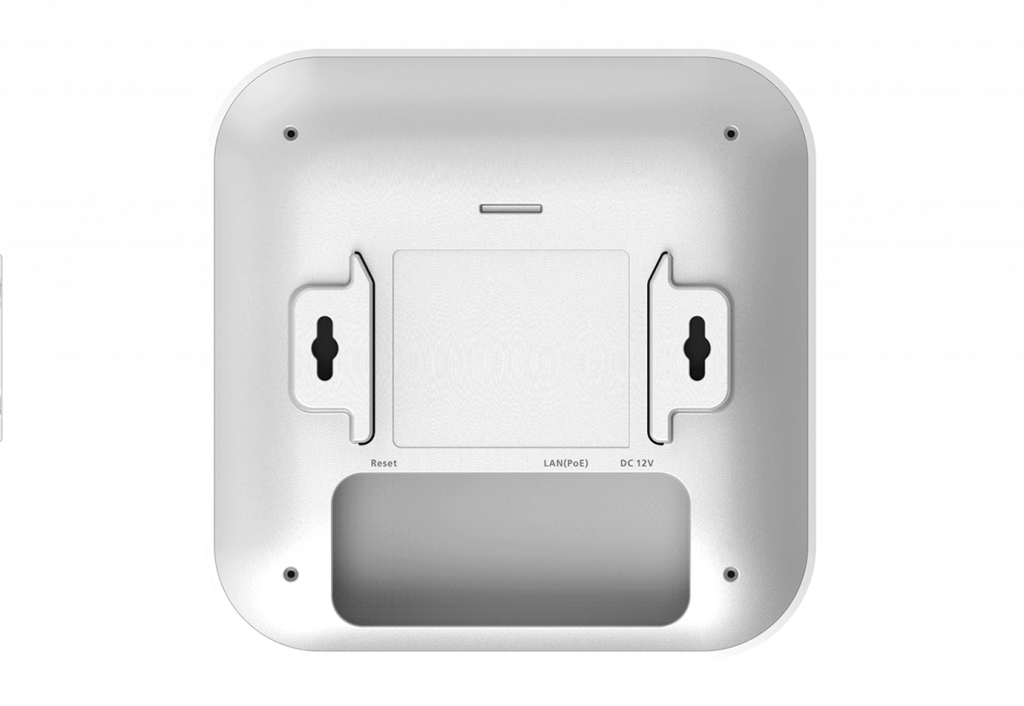

Physical Interface
1 x 10/100/1000 BASE-T, RJ-45 Ethernet Port
1x DC Jack
1 x Reset Button
LED Indicators
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz
Power Source
Power-over-Ethernet: 802.3at Input
12VDC /1.5A
Maximum Power Consumption
12.8W
Operating Frequency
Dual-Radio Concurrent 2.4 GHz & 5 GHz
Operation Modes
AP, Mesh
Frequency Radio
2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Transmit Power
Up to 22 dBm on 2.4 GHz
Up to 22 dBm on 5 GHz
Multiple BSSID
8 SSIDs for both 2.4GHz and 5GHz radios.
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
Compliant With IEEE 802.11e Standard
WMM
Wireless Security
WPA3
WPA2 Enterprise (AES)
WPA2 AES-PSK
Hide SSID in Beacons
MAC Address Filtering, Up to 32 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation
