| WiFi Ceiling Access point
| EnGenius ECW120 Cloud Management AP, 11ac wave2/a/b/g/n, Dual Band Concurrent Ceiling Mount

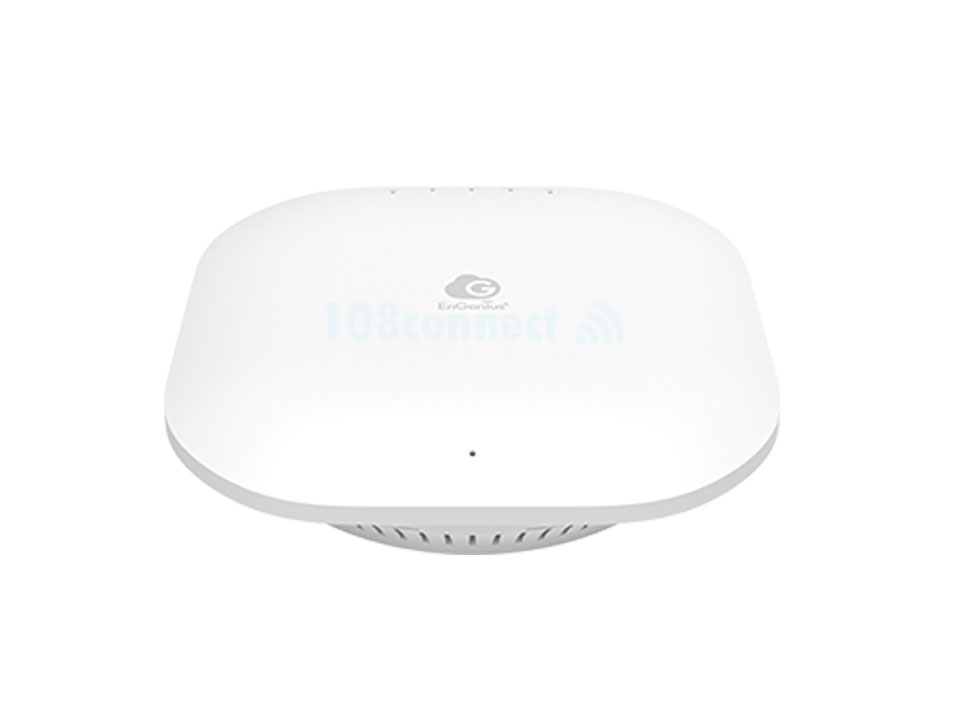

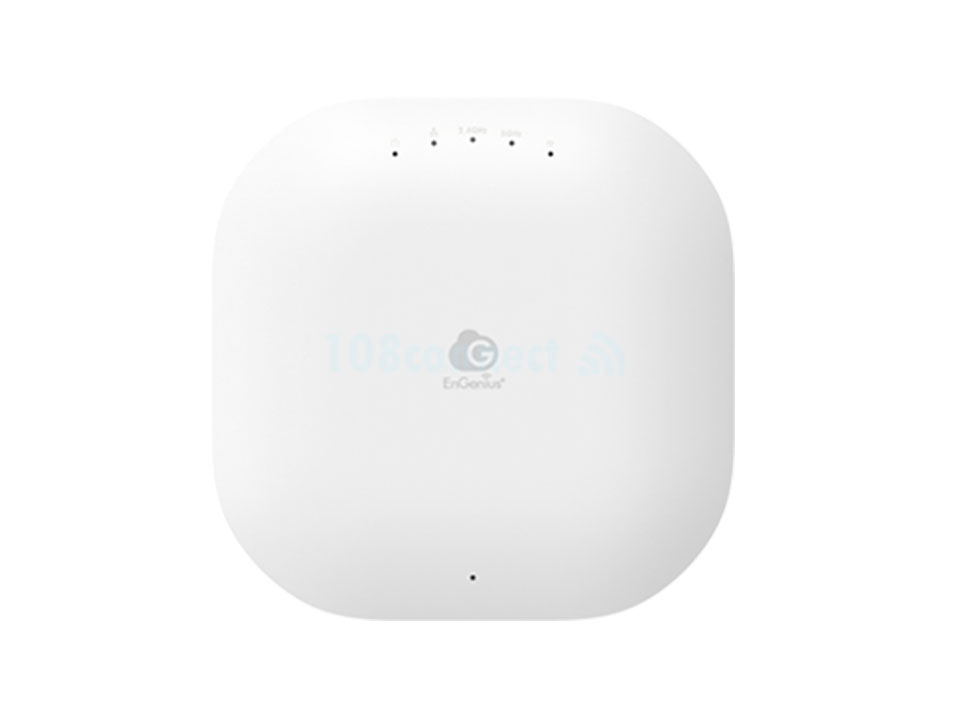

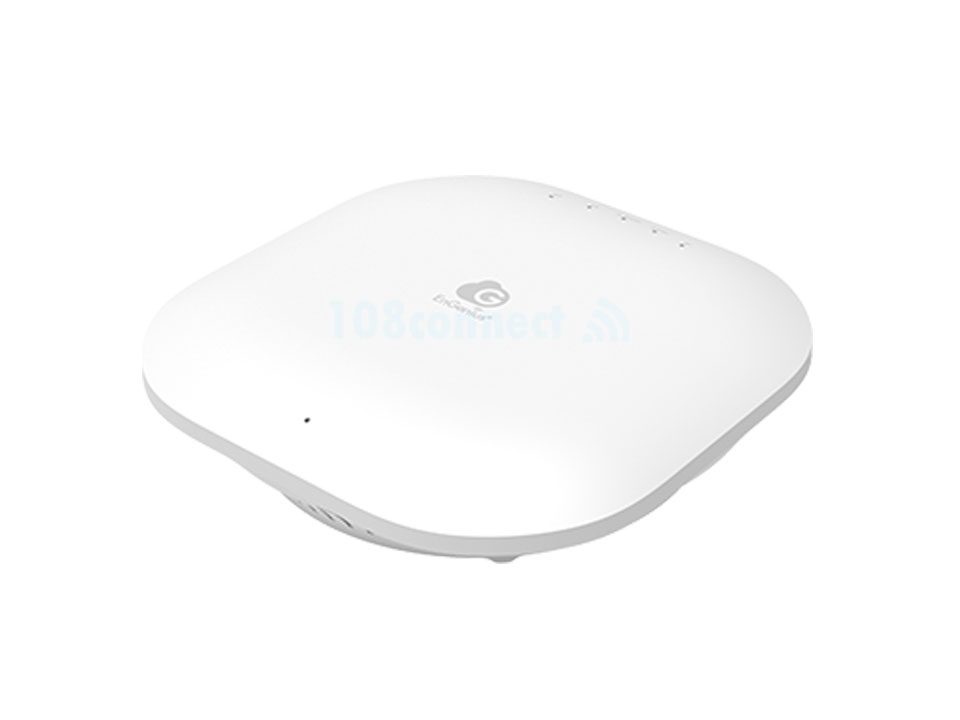

EnGenius ECW120 Cloud Management AP, 11ac wave2/a/b/g/n, Dual Band Concurrent Ceiling Mount
เพิ่มเมื่อ: 2019-09-02 15:49:47.0
แก้ไขล่าสุด: 2023-10-24 15:23:28.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comECW120 Cloud Management AP, 11ac wave2/a/b/g/n, Dual Band Concurrent Ceiling Mount AP, 1 x 10/100/1000 Mbps LAN Port, @ 2.4GHz, @ 5GHz, 2 x Integrate Antennas, 802.3af, DC12V (สินค้ารับประกัน 3 ปี)
EnGenius ECW120
ECW120 Cloud Management AP, 11ac wave2/a/b/g/n, Dual Band Concurrent Ceiling Mount AP, 1 x 10/100/1000 Mbps LAN Port, @ 2.4GHz, @ 5GHz, 2 x Integrate Antennas, 802.3af, DC12V
- Supercharged speeds up to 867 Mbps (5 GHz) & up to 400 Mbps (2.4 GHz)
- Wave 2 Mu-MIMO to meet Wi-Fi business demands
- Optional AP, AP mesh, and Mesh modes
- Allows more wireless clients & better connections
- Remote managing & monitoring
- Gigabit Ethernet PoE port for flexible power options
Technical Specifications
Standards
- IEEE 802.11b/g/n on 2.4 GHz
- IEEE 802.11a/n/ac on 5 GHz
Processor
- Qualcomm® 717 MHz Quad-Core CPU
- 4x ARM Cortex A7
Antenna
- 2×2, Integrated Omni-directional antennas (5 dBi gain @ 2.4 GHz, 5 dBi gain @ 5 GHz)

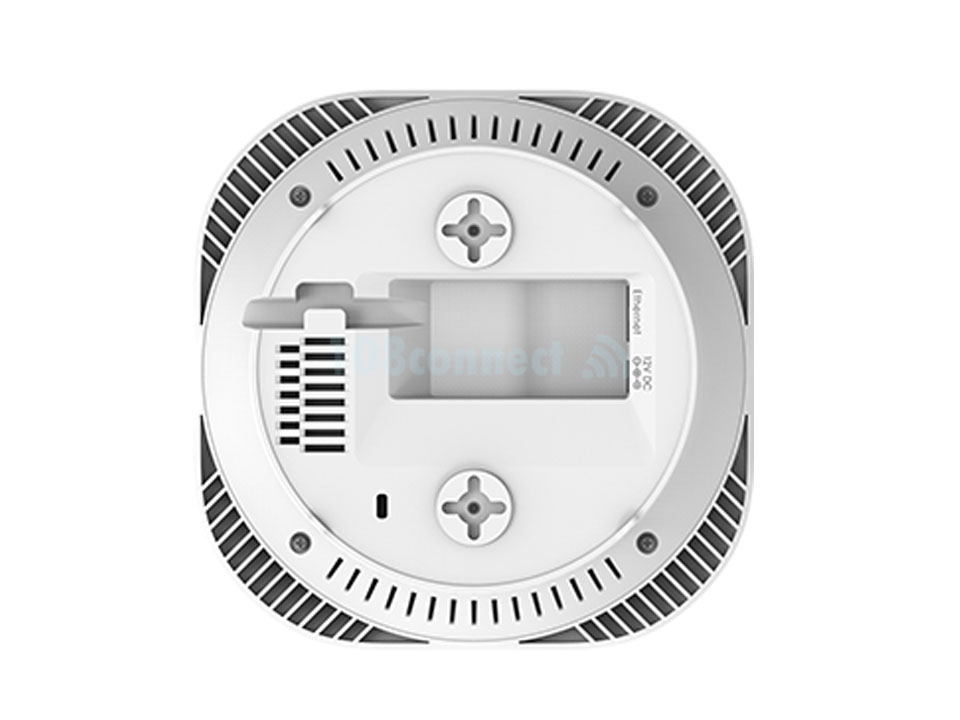

Physical Interface
- 1 x 10/100/1000 BASE-T, RJ-45 Gigabit Ethernet Port
- 1x DC Jack
- 1 x Reset Button
LED Indicators
- 1 x Power
- 1 x Mesh
- 1 x LAN
- 1 x 2.4 GHz
- 1 x 5 GHz
Power Source
- Power-over-Ethernet: 802.3af Input
- IEEE 802.11e Compliant Source
- 12VDC /1A Power Adapter
Maximum Power Consumption
- 12W
Surge Protection
- 0.5KV
Wireless & Radio Specifications
Operating Frequency
- Dual-Radio Concurrent 2.4 GHz & 5 GHz
Operation Modes
- Access Point Mode
- AP, AP Mesh, Mesh
Frequency Radio
- 2.4 GHz: 2400 MHz ~ 2835 MHz
- 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Transmit Power
- Up to 23 dBm on 2.4 GHz
- Up to 23 dBm on 5 GHz
Tx Beamforming (TxBF)
Radio Chains/Spatial Stream
- 2×2:2
SU-MIMO
- Two (2) Spatial Stream SU-MIMO up to 1,267 Mbps to a single client
MU-MIMO
- Two (2) Spatial Stream MU-MIMO up to 867 Mbps to two (2) 1×1 wireless devices simultaneously
Supported Data Rates (Mbps)
- 2.4 GHz: Max 400
- 5 GHz: Max 867
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 36, 48, 54
- 802.11n: 6.6 to 300 Mbps (MCS0 to MCS15)
- 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
Supported Radio Technologies
- 802.11b: Direct-Sequence Spread Spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
- 802.11n/ac: 2×2 MIMO with 2 Streams
Channelization
- 802.11ac Supports Very High Throughput (VHT)—VHT 20/40/80 MHz
- 802.11n Supports High Throughput (HT)—HT 20/40 MHz
- 802.11n Supports Very High Throughput (VHT) Under the 2.4 GHz Radio—VHT 40 MHz (256-QAM)
- 802.11n/ac Packet Aggregation: AMPDU, ASPDU
Supported Modulation
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
- 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Management Features
Multiple BSSID
- support 8 SSIDs on both 2.4GHz and 5GHz
VLAN Tagging
- Supports 802.1q SSID-to-VLAN Tagging
- Cross-Band VLAN Pass-Through
- Management VLAN
Spanning Tree
- Supports 802.1d Spanning Tree Protocol
- QoS (Quality of Service)
- Complaint With IEEE 802.11e Standard
- WMM
SNMP
- v1, v2c, v3
MIB
- I/II, Private MIB
Wireless Security
- WEP Encryption 64/128/152 bit
- WPA/WPA2 Enterprise (WPA-EAP Using TKIP or AES)
- Hide SSID in Beacons
- MAC Address Filtering, Up to 32 MACs per SSID
- Wireless STA (Client) Connected List
- SSH Tunnel
- Client Isolation
Environmental & Physica
Temperature Range
- Operating: 32ºF~104ºF (0 ºC~40 ºC)
- Storage: -22 ºF~176 ºF (-30 ºC~80 ºC)\
Humidity (non-condensing)
- Operating: 90% or less
- Storage: 90% or less
Dimensions & Weight
ECW120 Device
- Weight: 336g
- Diameter: 161.54 mm
- Height:41.66 mm
Package Contents
- 1 – ECW120 Cloud Managed Indoor Access Point
- 1 – T-Rail Mounting Kit
- 1 – Mounting Kit
- 1 – Mounting Bracket
- 1 – Quick Installation Guide
Certifications
- FCC
- CE
