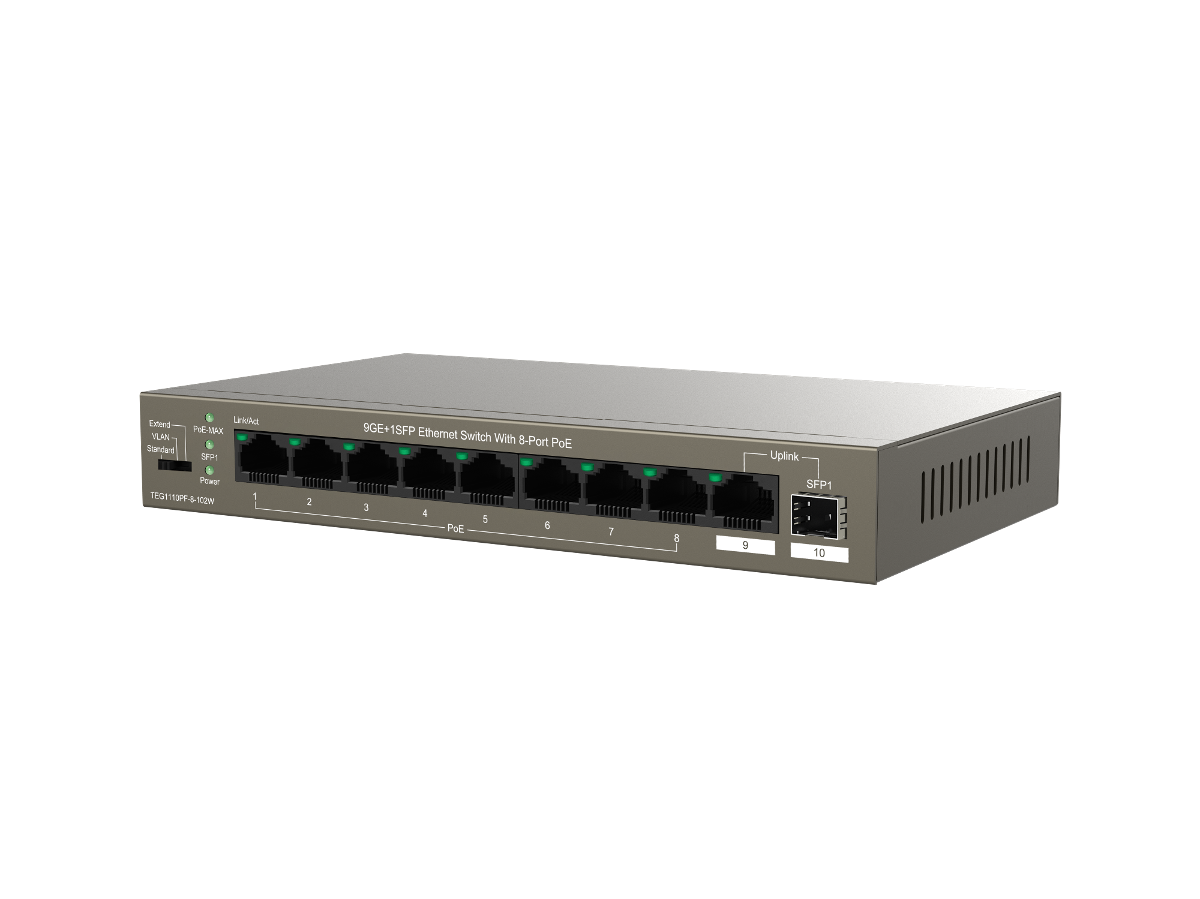

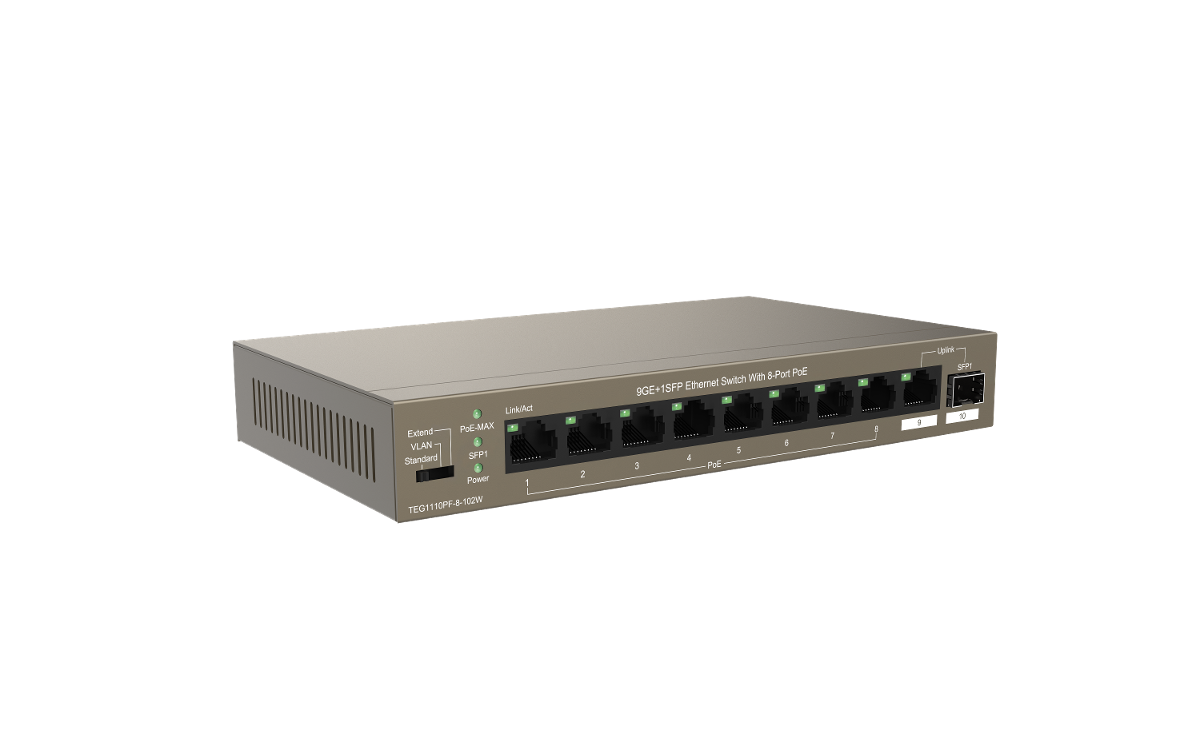

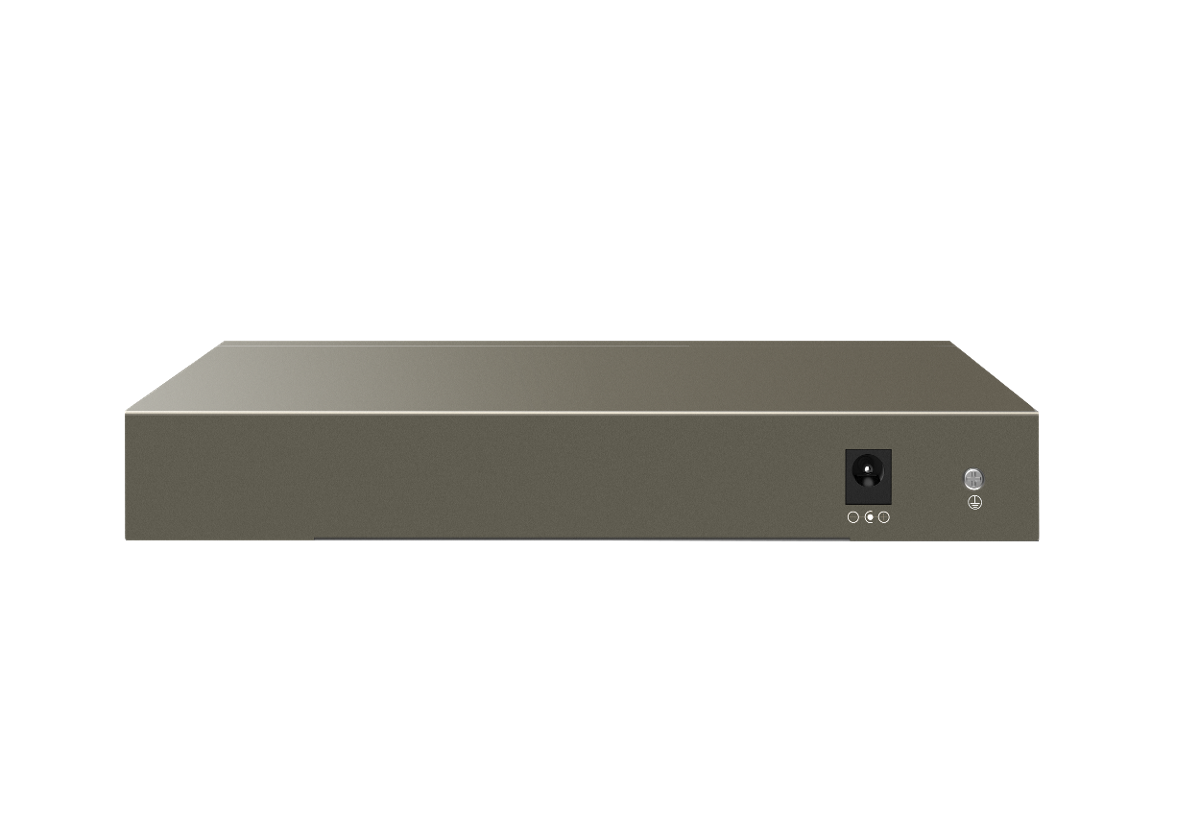

TENDA TEG1110PF-8-102W
SWITCH (สวิตซ์) TENDA TEG1110PF-8-102W 9GE+1SFP Ethernet Switch With 8-Port PoE
Network standards :
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.3af
IEEE 802.3at
LED Indicator :
10* Link/Ack LED indicators
1 * Power LED indicator
Interfaces :
8 * 10/100/1000 Mbps Base-T Ethernet ports (Data/Power)
1 * 10/100/1000 Mbps Base-T Ethernet port (Data)
1 * 100/1000 Mbps Base-X SFP port
Transmission media :
Recommended: CAT5/5e UTP or better
Dimension :
177.5mmx104.0mmx26.0mm(L*W*H)
Level of protection :
Lightning protection for ports: 6KV
Lightning protection for power: 6KV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode : Store-and-forward
Switch capacity : 20 Gbps
Packet forwarding rate : 14.9Mpps
Buffer : 2M
MAC address table : 16K
PoE budget :
Single port: AF: 15.4W, AT: 30W
Whole device: 92W
Input voltage :
100-240V AC 50/60Hz
51V /2.0A DC(Power Adapter Output )
Mounting :
Desktop mounting: support
Wall mounting: support
Rack mounting : non-support
Environment :l
Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
|
|
|
|
