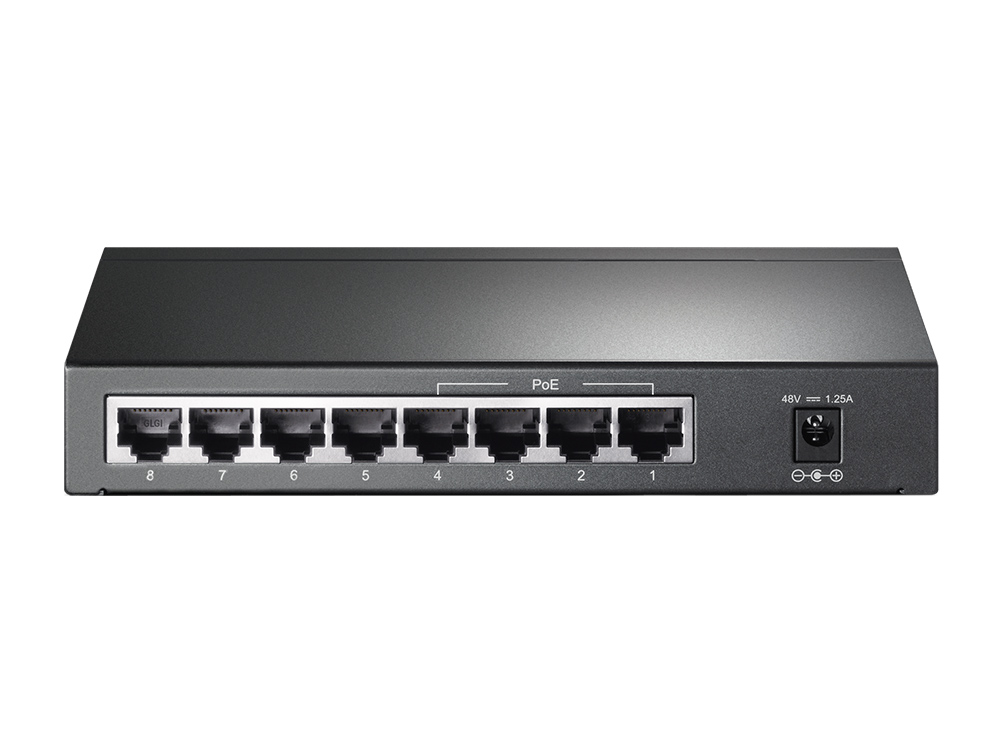

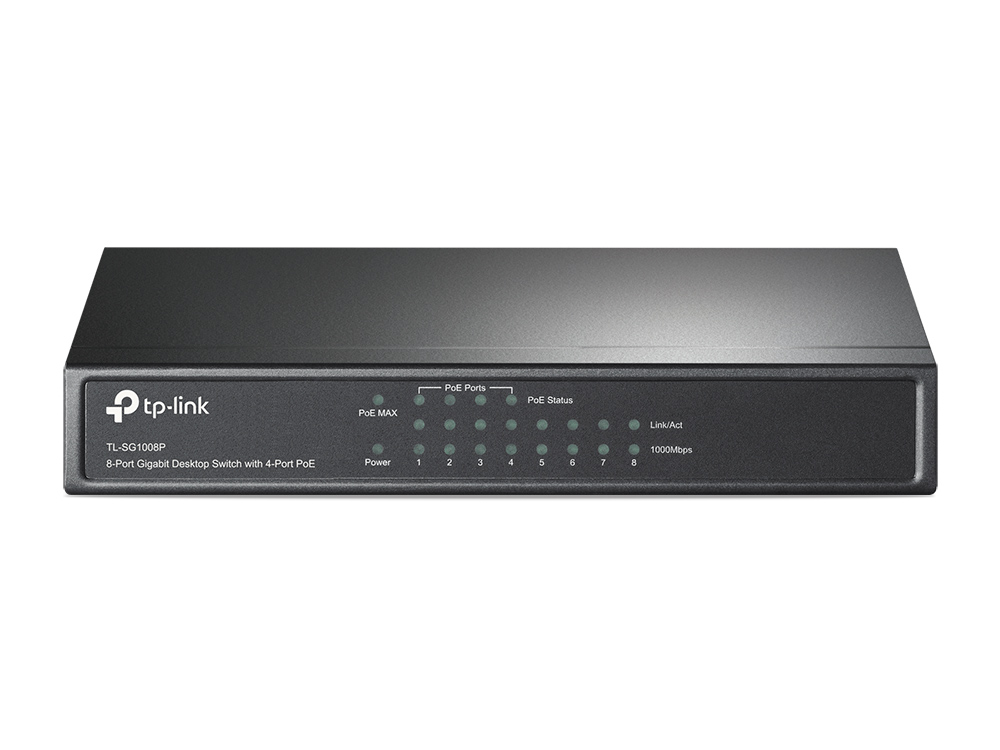

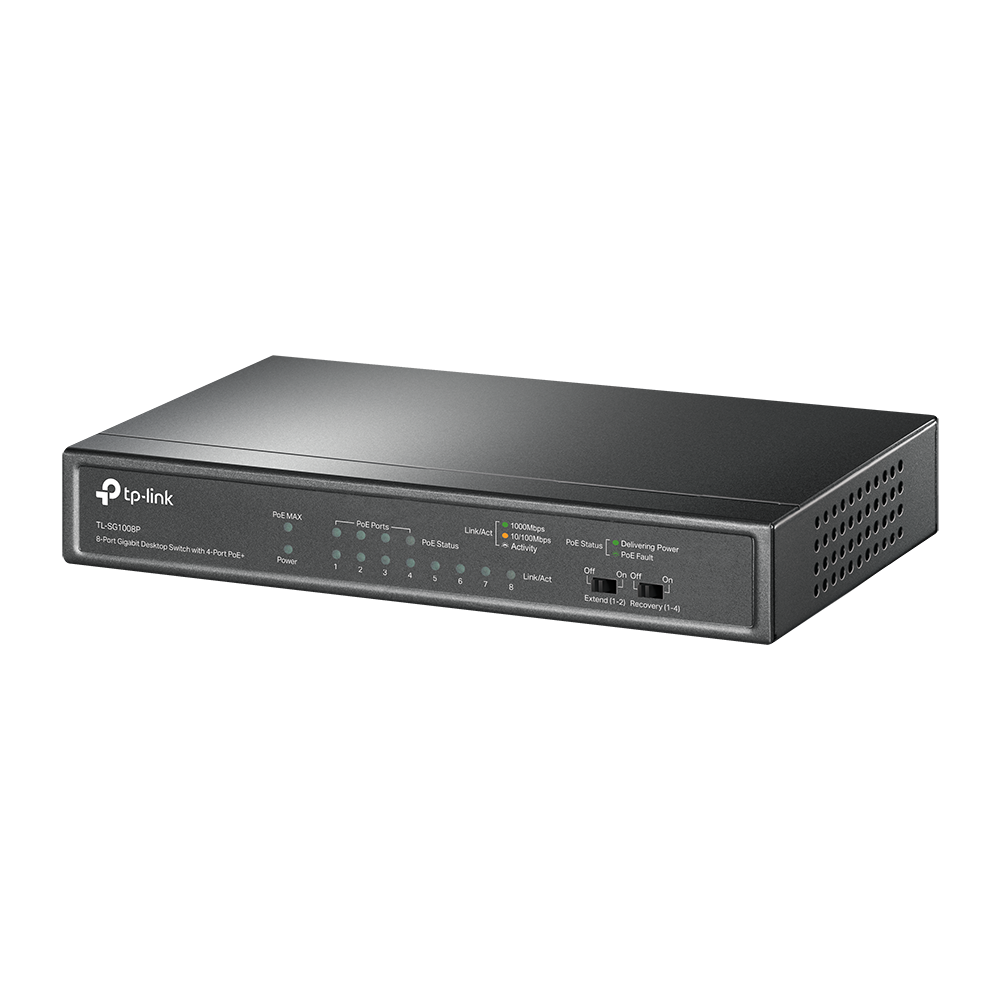

TP-LINK TL-SG1008P 8-Port Gigabit PoE Switch, 8 Gigabit RJ45 Port including 4 PoE Port, steel case
เพิ่มเมื่อ: 2013-11-05 18:02:03.0
แก้ไขล่าสุด: 2024-07-02 15:24:39.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comTL-SG1008P 8-Port Gigabit Desktop Unmanaged PoE Switch with 4-Port PoE (สินค้ารับประกัน ตลอดอายุการใช้งาน)
TP-LINK TL-SG1008P
TL-SG1008P 8-Port Gigabit Desktop Unmanaged PoE Switch with 4-Port PoE
- 8 10/100/1000Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Supports PoE power up to 15.4W for each PoE port
- Supports PoE power up to 53W for all PoE ports
- Supports PoE IEEE 802.3af compliant PDs
- Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
- 8K entry MAC address table of the TL-SG1008P with auto-learning and auto-aging
- LED indicators for monitoring power, link, activity and speed
- External power adapter supply
Specifications
Interface :
• 8× 10/100/1000 Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media :
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity : Fanless
Physical Security Lock : Yes
External Power Supply : External Power Adapter(Output: 53.5VDC / 1.31A)
Packet Forwarding Rate : 11.904 Mpps
PoE Ports (RJ45) :
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 64 W
Mac Address Table : 4K
Jumbo Frame : 16 KB
Switching Capacity : 16 Gbps
Dimensions ( W x D x H ) : 6.7×3.9×1.1 in (171×98×27 mm)
Max Power Consumption :
• 4.7 W (220/50 Hz no PD connected)
• 74.39 W (220/50 Hz with 64 W PD connected)
Max Heat Dissipation :
• 16.03 BTU/h (no PD connected)
• 253.67 BTU/h (with 64 W PD connected)
Advanced Functions :
• Compatible With IEEE 802.3af/at Compliant PDs
• IGMP Snooping
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control
• 802.1p/DSCP QoS
• Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)
• PoE Auto Recovery (Ports 1-4)
Package Contents :
• TL-SG1008P
• Power Adapter
• Installation Guide
Environment :
• Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
