PLANET VC-231 100/100Mbps Ethernet to VDSL2 Converter-30a profile

 เพิ่มเมื่อ: 2013-10-18 13:41:55.0
 แก้ไขล่าสุด: 2023-03-22 16:40:58.0
 เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
 อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
VC-231 Ethernet over VDSL2 Converter (Profile 30a) (สินค้ารับประกัน 3 ปี)
4690.00 บาท

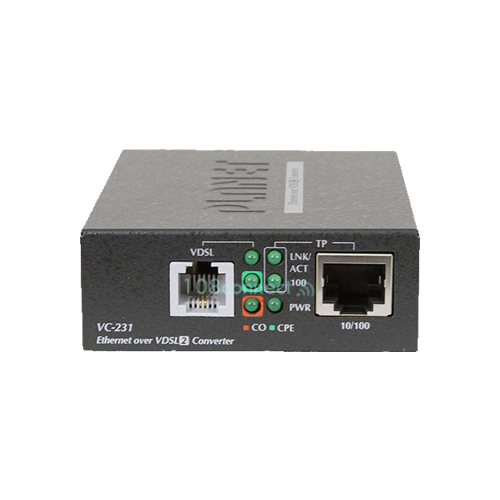

 PLANET VC-231

VC-231 Ethernet over VDSL2 Converter (Profile 30a)

Cost-Effective VDSL2 Profile 17a/30a CO / CPE bridge solution

Complies with IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX and IEEE 802.3x, Flow control Ethernet standards

Half duplex Back pressure and IEEE 802.3x Full Duplex Pause frame flow control

One RJ-11 connector for VDSL port with VDSL connection, additional Splitter for POST connection

Voice and data communication can be shared simultaneously based on the existing telephone wire

One 10/100Mbps RJ-45 port, Auto-Negotiation and Auto-MDI/MDI-X

Supports up to 1536 bytes packet size, IEEE 802.1Q VLAN tag transparent

VDSL2 stand-alone transceiver for simple bridge modem application

Advantage of minimum installation time (Simply as Plug-and-Play)



Application



Ethernet Distance Extension
Two VC-231 acting as a standalone pair is good for Ethernet distance extension over existing telephone wires. With just one pair of AWG-24 copper wire, you can easily connect two Ethernet networks together with the data rate of maximum 100/100Mbps. With the additional splitter, the telephone service can still be used while the VC-231 CO/CPE is in operation. The two solutions listed below are typical applications for the Ethernet over VDSL2 Converter.





MTU / MDU / Hospitality Solution
The VC-231 is a perfect solution to quickly providing cost-effective yet high speed network services to multi-unit buildings such as residential buildings (multi-dwelling units), commercial (multi-tenant units) buildings, hotels or hospitals. By utilizing the existing telephony infrastructure, network installation is straightforward and requires no new wiring. With up to 100/100Mbps transmission, Video on Demand, IP telephony and various broadband services can be easily provided.



Last Mile of FTTx Deployment
The VC-231 is an ideal solution for FTTx (Fiber to the Building, Fiber to the Campus or Fiber to the Node) applications. It supports high bandwidth VDSL2 over existing telephone wires in the “last mile” from the ISP / Telecom / Service provider’s fiber node to the buildings and customers' houses. The 10/100Mbps port of the VC-231 can be directly connected to a PC or to Ethernet devices such as Ethernet Switches or Broadband Routers. It is excellent for phone line network built under Internet because every room or house can use the existing phone line to transmit data through the Internet and the whole building can share the Internet to the wider area network at a minimum cost.





Specification

Hardware Specification
Ports 10/100Base-TX: 1 RJ-45, Auto-Negotiation and Auto-MDI/MDI-X
VDSL: 1 RJ-11, female Phone Jack
PHONE: Additional Splitter for POST connection

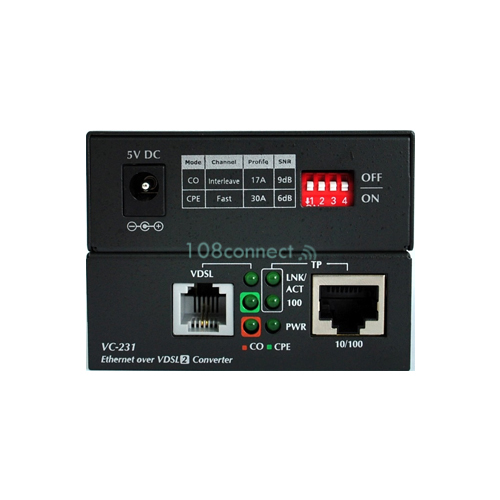

DIP Switch & Functionality • 4 position DIP switch
• CO / CPE mode select
• Selectable fast and interleaved mode
• Selectable target 17a / 30a profiles
• Selectable target SNR mode
Encoding • VDSL-DMT
- ITU-T G.993.1 VDSL
- ITU-T G.997.1
- ITU-T G.993.2 VDSL2 (Profile 17a/30a Support)
LED Indicators • One Power
• 3 for RJ-11/VDSL2
• 2 for per RJ-45 10/100Base-TX port
Cabling • Ethernet
10Base-T: 2-pair UTP Cat.3,4,5 up to 100m (328ft)
100Base-TX: 2-pair UTP Cat.5, up to 100m (328ft)
• VDSL
Twisted-pair telephone wires (AWG24 or better) up to 1.4km
Performance* (Downstream / Upstream) • 17a profile
300m -> 86/65Mbps
400m -> 86/52Mbps
600m -> 81/36Mbps
800m -> 72/19Mbps
1000m -> 60/9Mbps
1200m -> 59/6Mbps
1400m -> 50/2Mbps

• 30a profile
300m -> 100/100Mbps
400m -> 90/90Mbps
600m -> 61/40Mbps
800m -> 54/8Mbps
Power Requirement 5V DC, 2A
Power Consumption 6.6 Watts / 22 BTU
Dimension (W x D x H) 97 x 70 x 26 mm
Weight 199g
Environment
Operating Temperature: 0 ~ 50 Degree C
Relative Humidity: 10 ~ 90% (non-condensing)
Storage Temperature: -10 ~ 70 Degree C
Relative Humidity: 10 ~ 90% (non-condensing)
Switch Specification
Switch Processing Scheme Store-and-Forward
Address Table 1K entries
Flow Control Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex
Switch fabric 0.2Gbps
Throughput (packet per second) 0.14Mpps
Network cables 10/100Base-TX:
2-Pair UTP Cat. 3,4, 5 (100meters, max.)
EIA / TIA-568 100-ohm STP (100meters, max.)
Standard Conformance
Regulation Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
ITU-T
- G.993.1 (VDSL)
- G.997.1
- G.993.2 VDSL2 (Profile 17a/30a)
